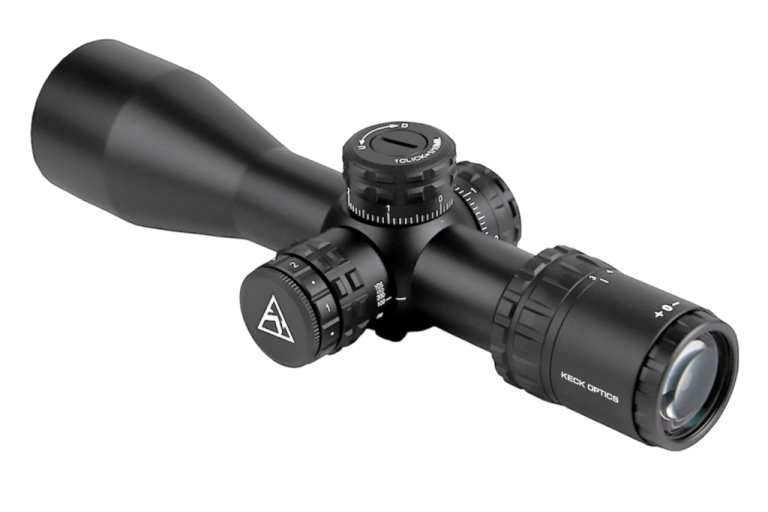

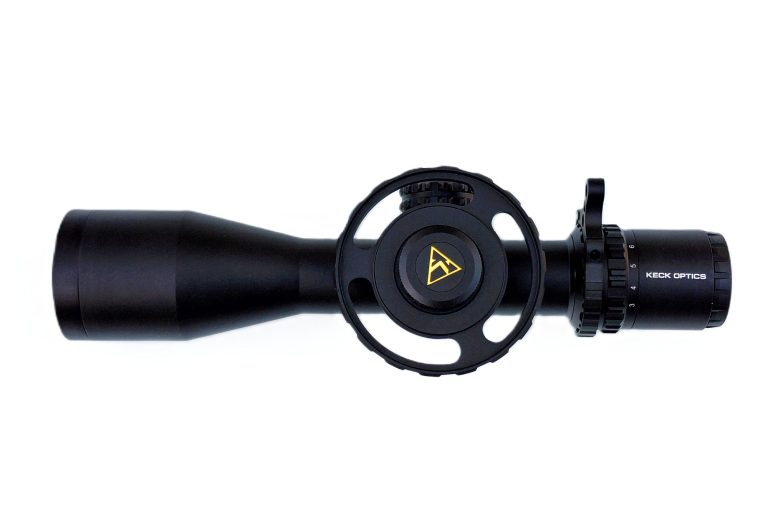

BREEZE Series
The Keck Breeze compact scope series are a high-performance optical device designed to meet the needs of the shooter. Its compact size make it ideal for hunting. Its rugged construction make it ideal for Airguns (including Springers) and Firearms of any calibre.

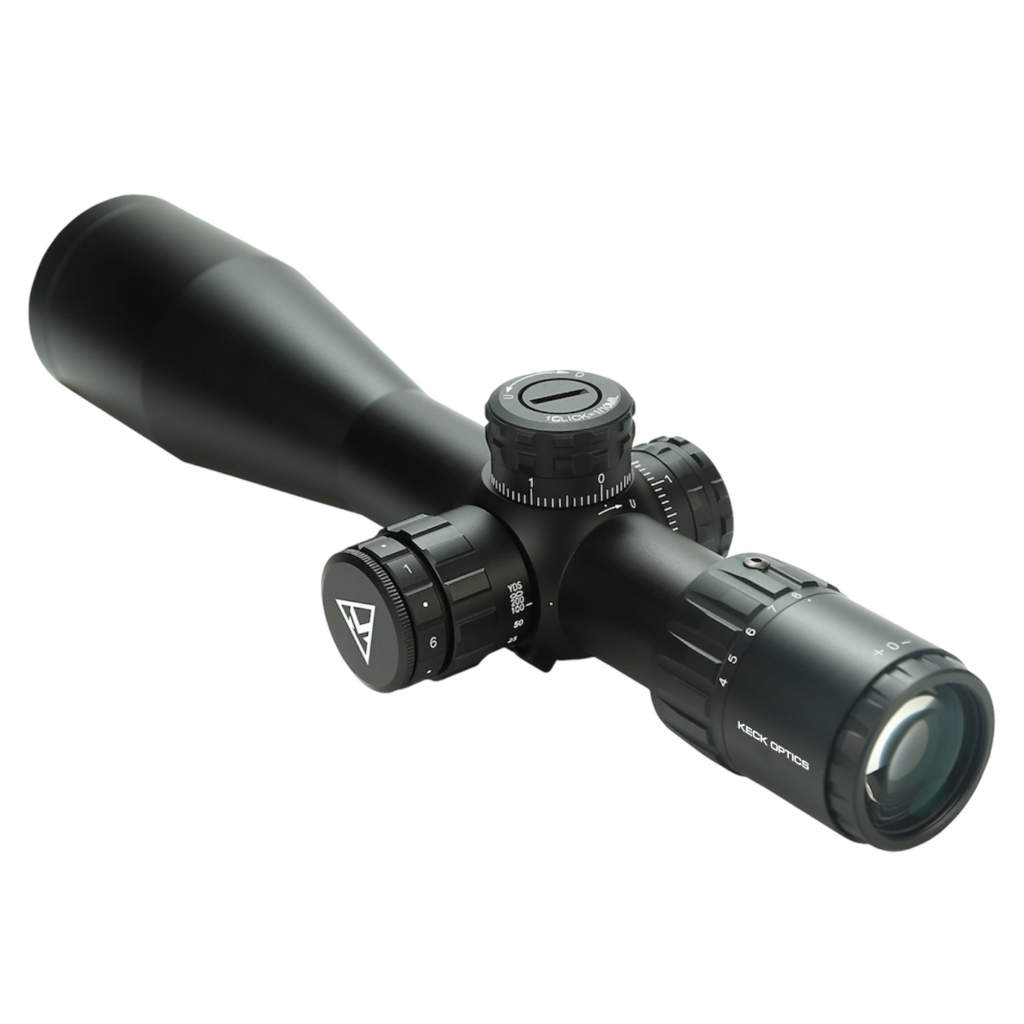

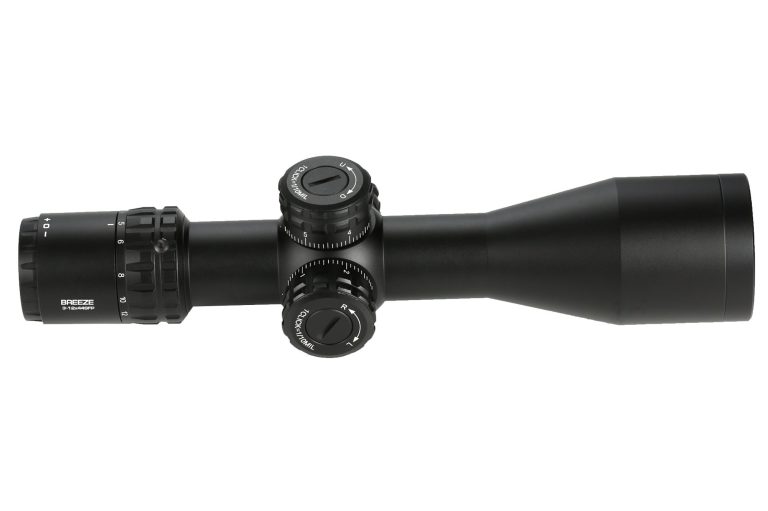

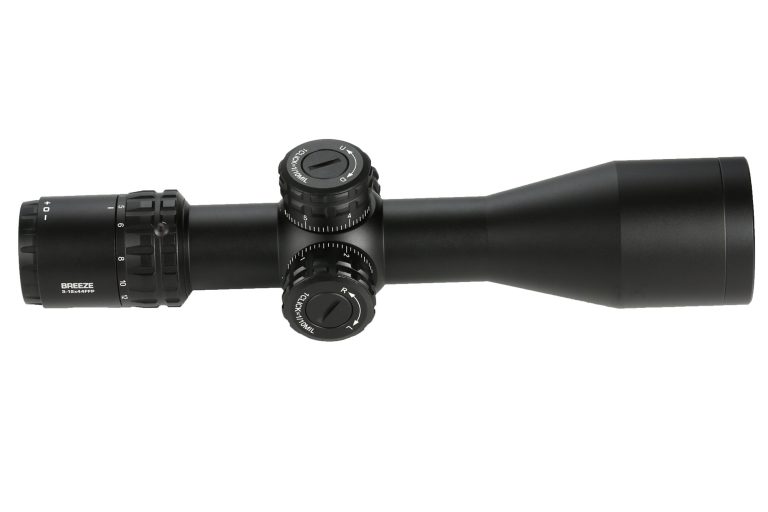

BREEZE 3-12x44 FFP
Model: C30313
.First Focal Plane (FFP) Design: The reticle is located on the first focal plane, scaling with magnification to enable precise range estimation and ballistic compensation at different magnifications.
Compact Design: With a short design length of approximately 245mm, it is easy to mount and carry, making it suitable for various firearm platforms.
Durable Construction: Made from rugged aircraft-grade aluminum, it is waterproof, fog-proof, and shockproof, suitable for harsh environments.
BREEZE 3-12x44 FFP IR
Model: C30312
First Focal Plane (FFP) Design: The reticle is located on the first focal plane, scaling with magnification to enable precise range estimation and ballistic compensation at different magnifications.
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system, ensuring clear aiming in low-light conditions.
Compact Design: With a short design length of approximately 245mm, it is easy to mount and carry, making it suitable for various firearm platforms.
BREEZE 4-16x44 FFP IR
Model: C30416
First Focal Plane (FFP) Design: The reticle is located on the first focal plane, scaling with magnification to enable precise range estimation and ballistic compensation at different magnifications.
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system, ensuring clear aiming in low-light conditions.
Compact Design: With a short design length of approximately 270mm, it is easy to mount and carry, making it suitable for various firearm platforms.

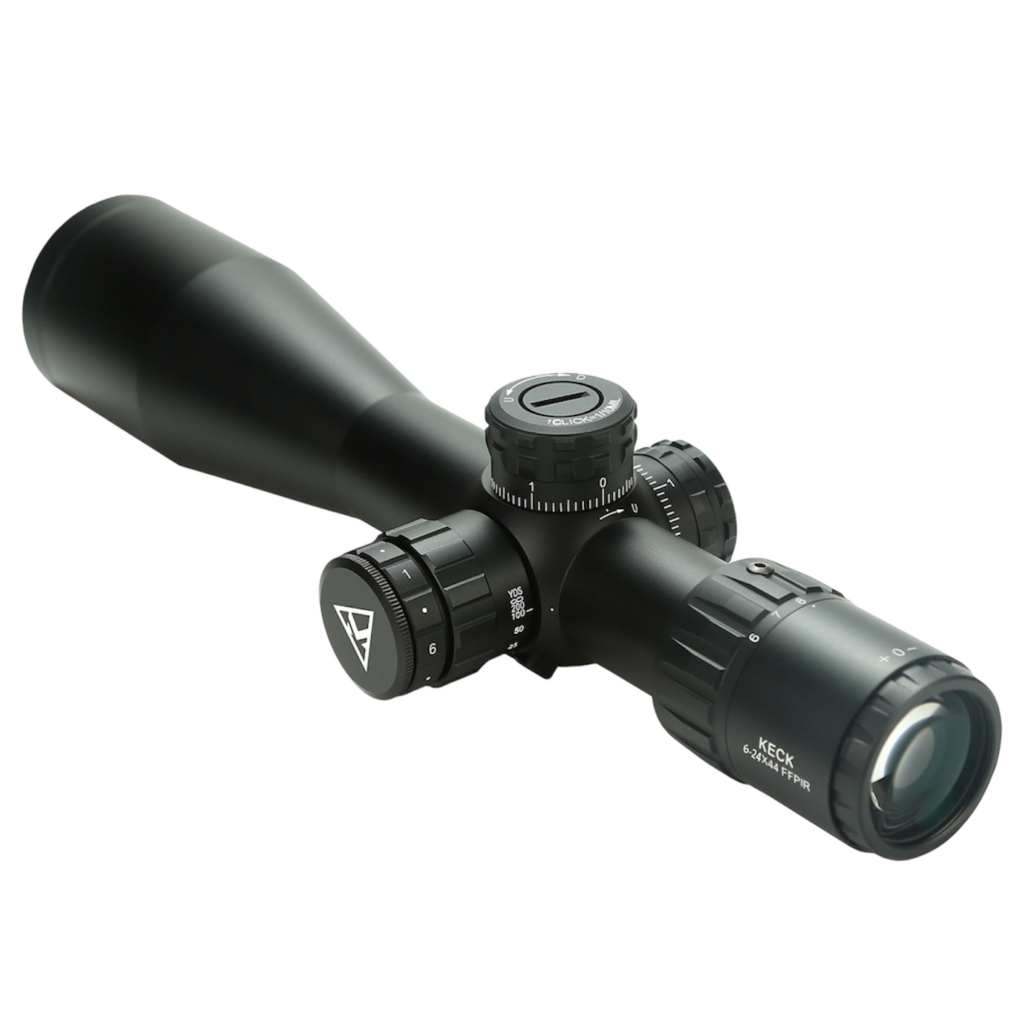

BREEZE 6-24x44 FFP IR
Model: C30624
First Focal Plane (FFP) Design: The reticle is on the first focal plane, scaling with magnification to allow for accurate range estimation and ballistic compensation at any magnification level.
Illuminated Reticle (IR): Features an adjustable brightness reticle illumination system for clear aiming in low-light conditions.
Compact Design: With a compact length of approximately 297mm and mount, suitable for various firearm platforms.

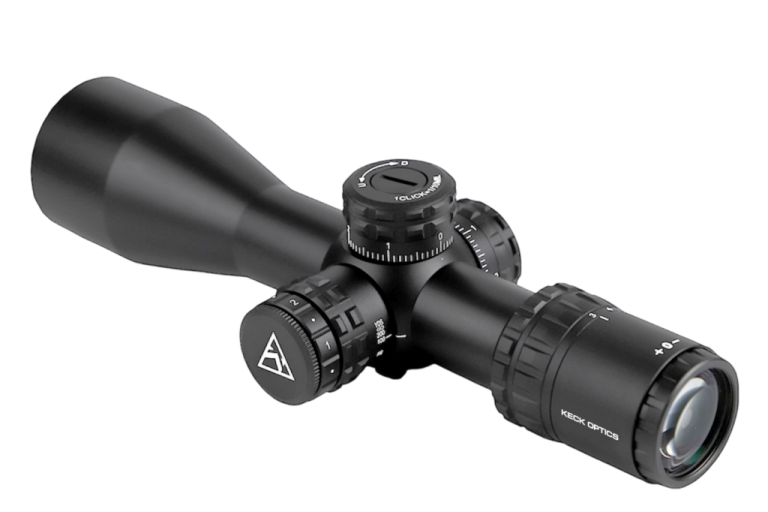

BREEZE 3-12x44 SFP
Model: C30313S
Second Focal Plane (SFP) Design: The reticle is positioned on the second focal plane, maintaining a consistent size as magnification changes, allowing for precise aiming at different magnifications.
HD Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 90% light transmission.
Compact Design: With a compact length of approximately 24.5 cm, it is easy to carry and mount, suitable for a variety of firearm platforms

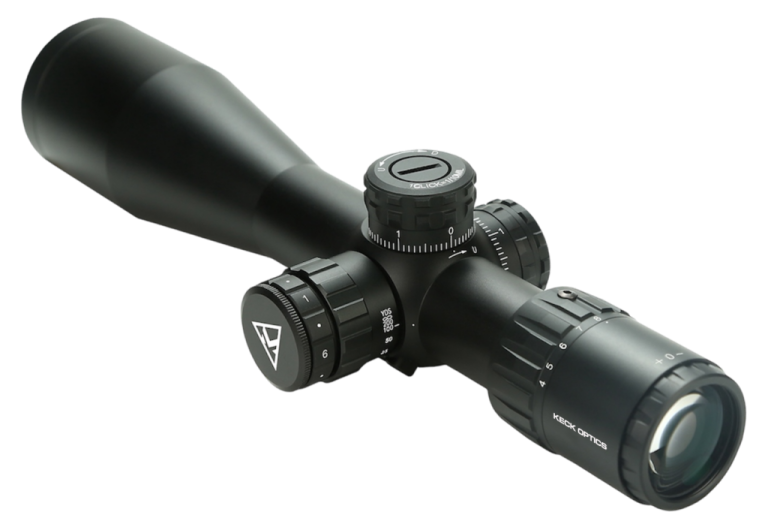

BREEZE 4-16x44 SFP IR
Model: C30416S
Second Focal Plane (SFP) Design: The reticle is positioned on the second focal plane, maintaining a consistent size as magnification changes, allowing for precise aiming at different magnifications.
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system, ensuring clear aiming in low-light environments.
Compact Design: With a compact length of approximately270mm, it is easy to carry and mount, suitable for a variety of firearm platforms.
BREEZE 6-24x44 SFP IR
Model: C30624S
Second Focal Plane (SFP) Design: The reticle is positioned on the second focal plane, keeping its size consistent as magnification changes, allowing for precise aiming at different magnifications.
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system, ensuring clear aiming in low-light environments.
Compact Design: With a length of approximately 297mm, it is easy to carry and mount, suitable for a variety of firearm platforms.
Key Features:
The Keck Breeze compact scope series are a high-performance optical device designed to meet the needs of the shooter. Its compact size make it ideal for hunting. Its rugged construction make it ideal for Airguns (including Springers) and Firearms of any calibre.

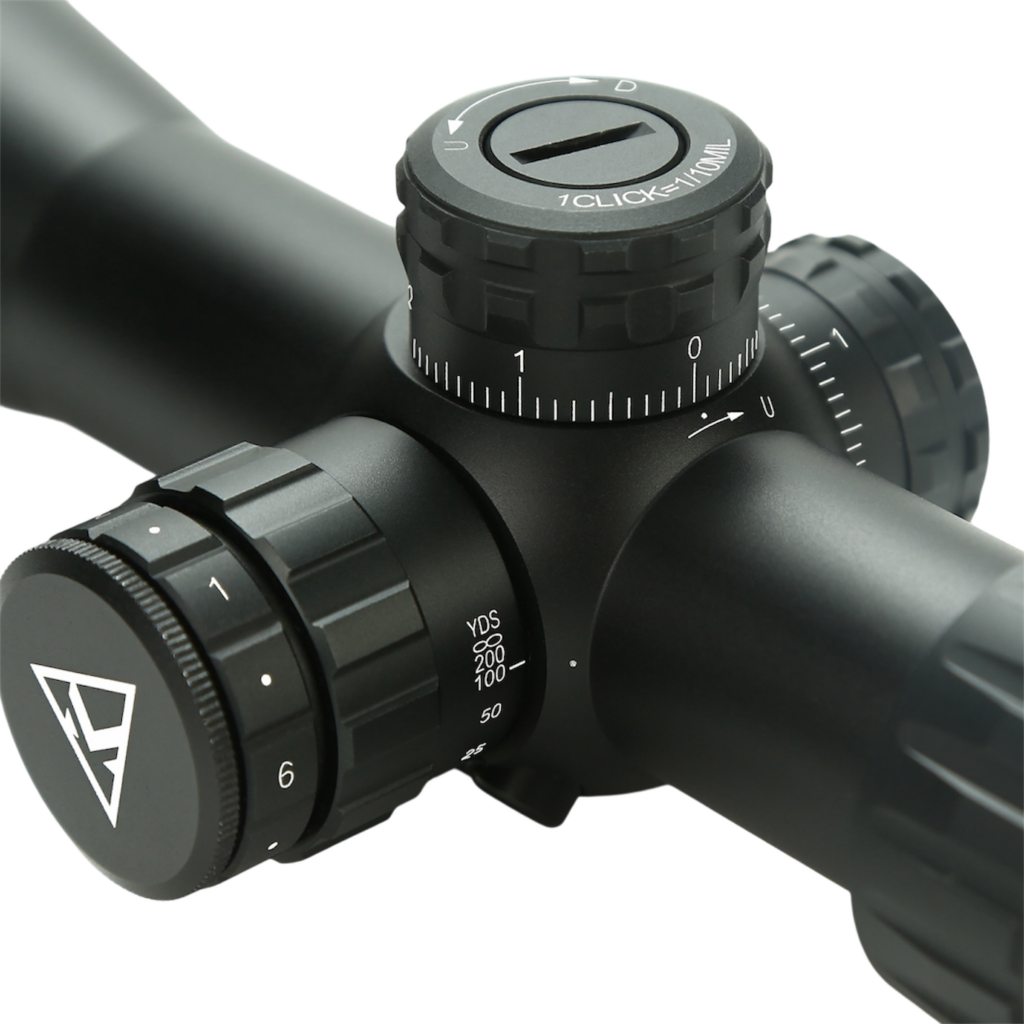

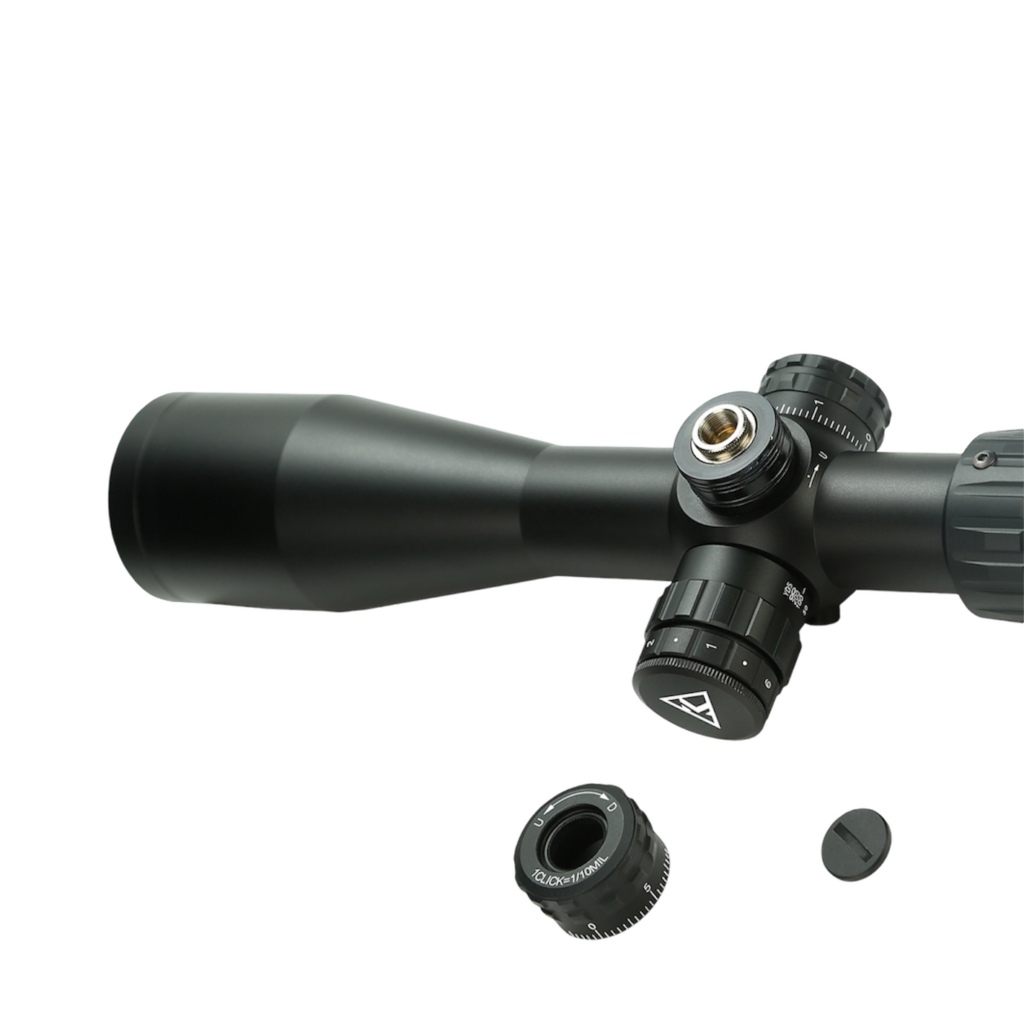

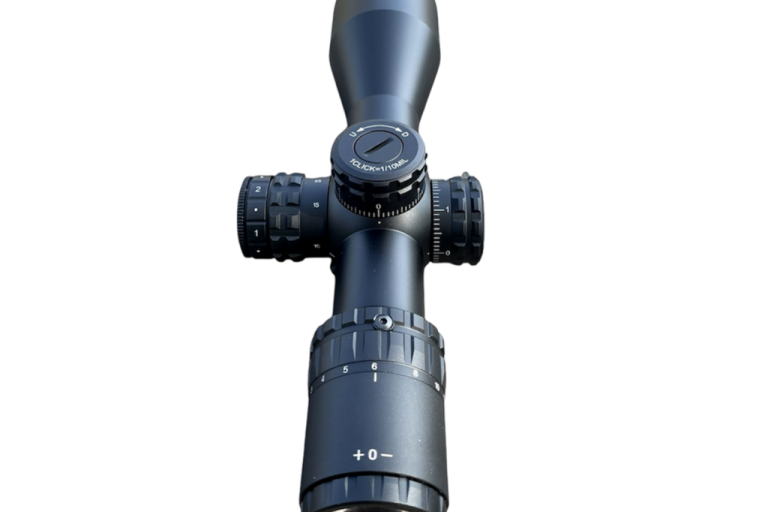

Push Lock Turrets
Its main feature is that it can prevent adjustment deviation due to accidental collision or touch during transportation, carrying or use through the locking mechanism, ensuring that the aiming point set by the shooter always remains unchanged
1/10 MIL Adjustments
Parallax adjustment for focus from 10 yards to infinity. Turrets provide precise adjustment.
Elevation/Windage adjustment range of >17.5 MIL (22 MIL on 3-12 models)
Anti-Reflective Coatings
Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 90% light transmission.
Durable Construction:
Made from rugged aircraft-grade aluminum, it is waterproof, fog-proof, and shockproof, making it suitable for harsh environments.

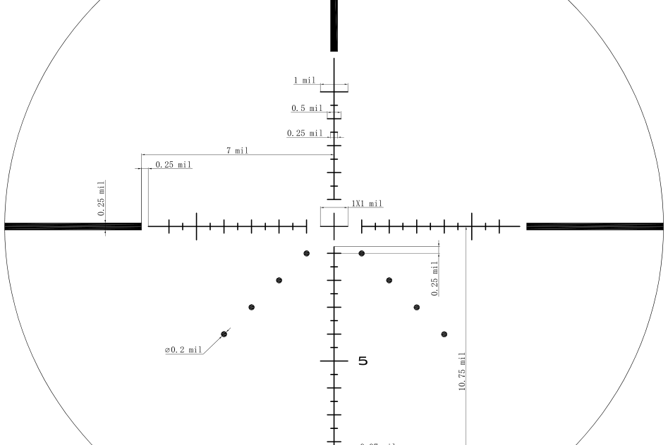

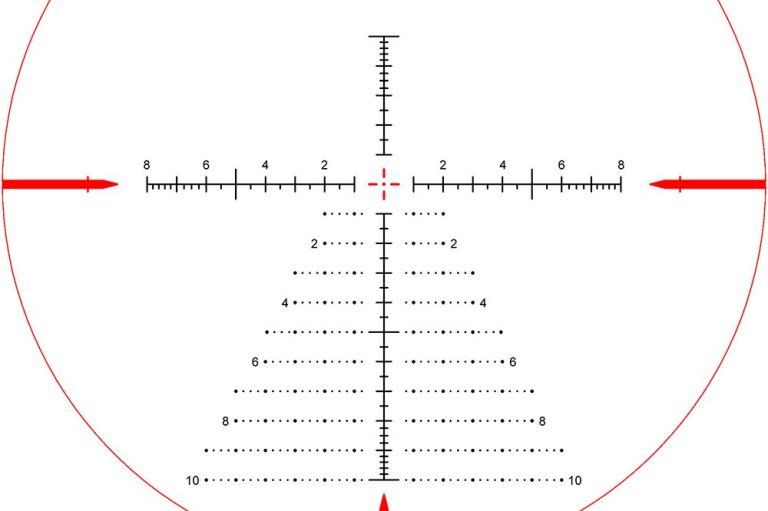

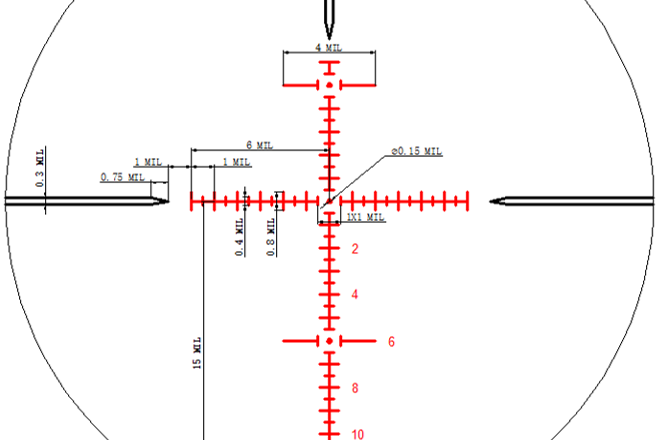

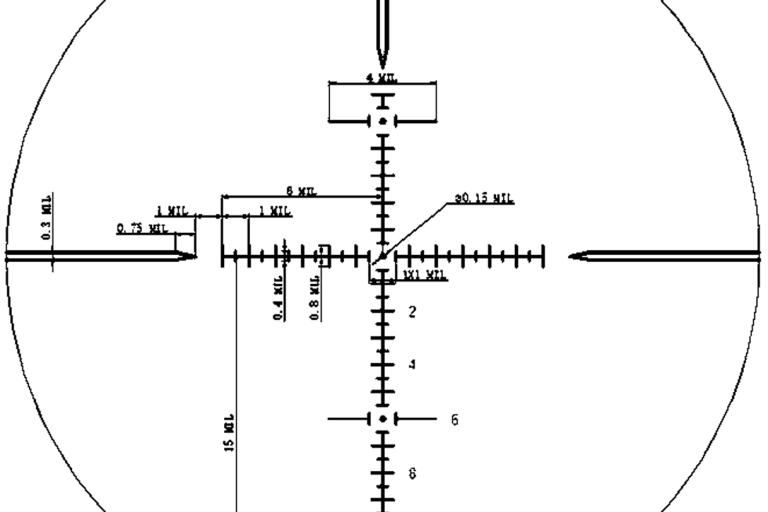

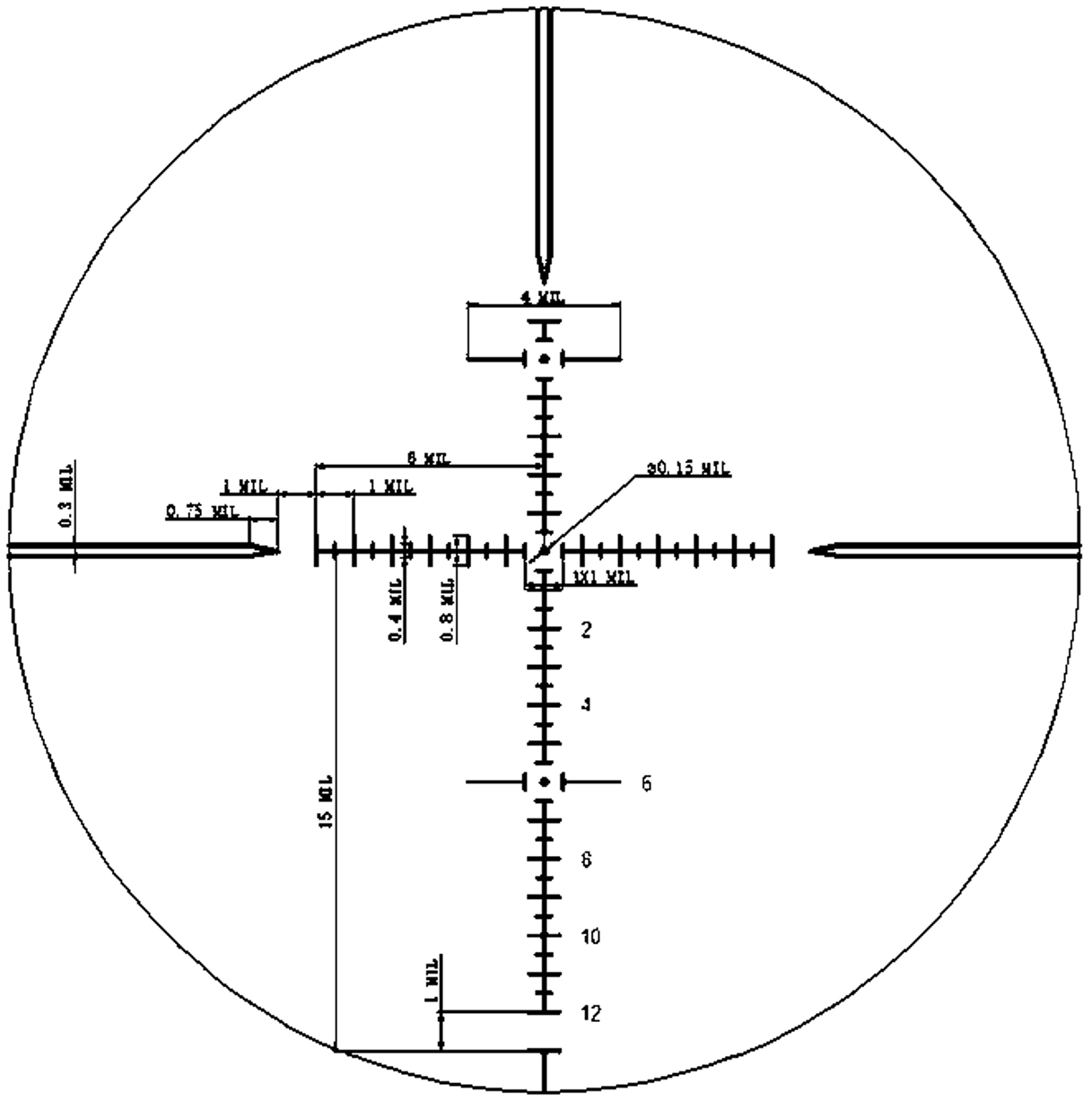

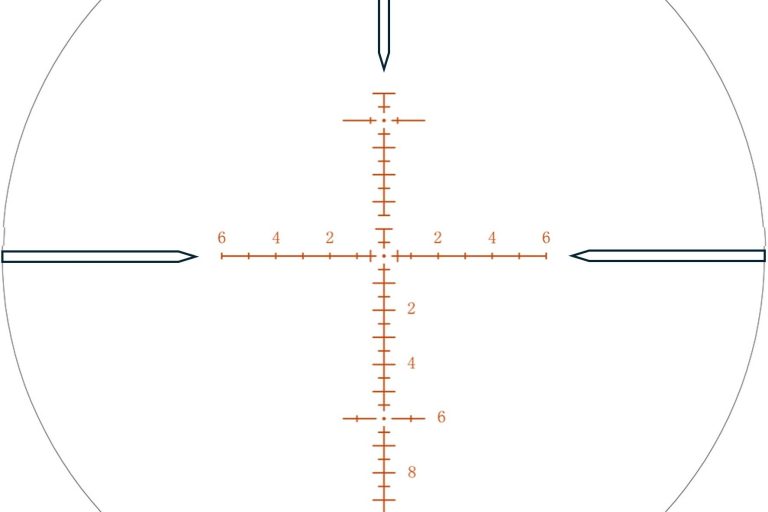

First Focal Plane G2B Reticle
Illuminated or Non Illuminated First Focal Plane reticle used in FFP / FFP IR models

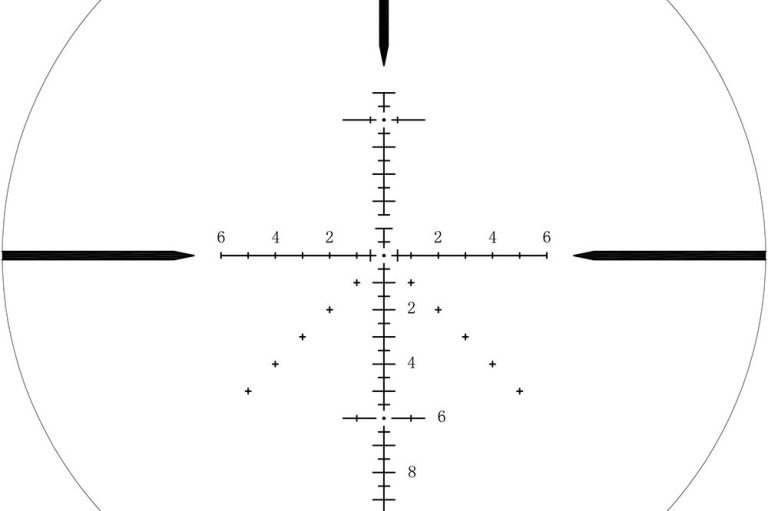

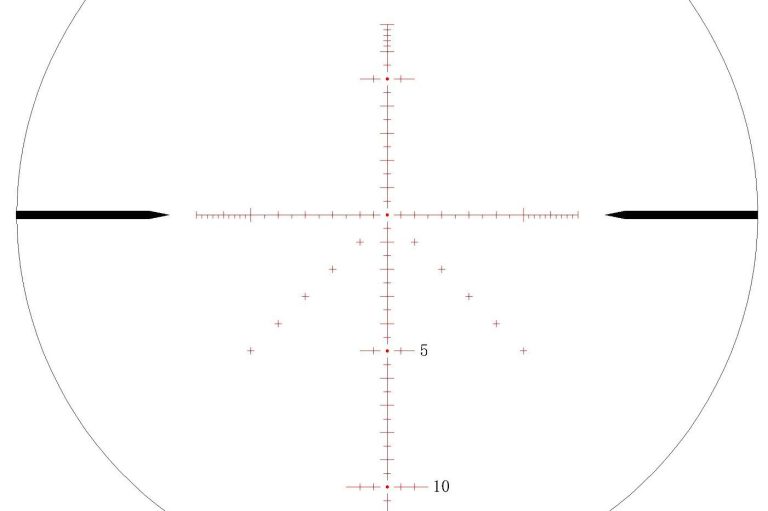

Second Focal Plane G1 Reticle
Illuminated or Non Illuminated Second Focal Plane reticle used in SFP / SFP IR models
Specifications:
Breeze 3-12x44
Model: C30313 / C30313S
Magnification:3-12x
Scope Tube Diameter: 30mm
Lens Coating: Green multi coated
Reticle Type: Etched
Ocular Lens Diameter：31mm
Objective Lens Diameter：44mm
Exterior Finish: Matte Black
Mounting Length: 105mm
Objective/Field of View/ 100 yds: 35.1-8.7 feet （6.7°-1.675°）
Exit Pupil: 14.6mm – 3.6mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range:±11.5 MRAD (23MRAD- 80MOA)
Max. windage adjustment range: ± 11.5 MRAD (23MRAD- 80MOA)
Parallax correction: 10yds-∞
Length: 9.65″, (245.0mm)
Breeze 3-12x44 IR
Model: C30312 / C30312S
Magnification: 3-12x
Scope Tube Diameter: 30mm
Lens Coating: Green multi coated
Reticle Type: Etched / Illuminated
Ocular Lens Diameter：31mm
Objective Lens Diameter：44mm
Exterior Finish: Matte Black
Mounting Length: 105mm
Objective/Field of View/ 100 yds: 35.1-8.7 feet （6.7°-1.675°）
Exit Pupil: 14.6mm – 3.6mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range:±11.5 MRAD (23MRAD- 80MOA)
Max. windage adjustment range: ± 11.5 MRAD (23MRAD- 80MOA)
Parallax correction: 10yds-∞
Length: 9.65″, (245.0mm)
Breeze 4-16x44 IR
Model: C30416 / C30416S
Magnification: 4-16x
Scope Tube Diameter: 30mm
Lens Coating：green multi coated
Reticle Type :Etched / Illuminated
Ocular Lens Diameter：31mm
Objective Lens Diameter: 44mm
Exterior Finish:Matte Black
Mounting Length: 106mm
Objective/Field of View : 26.2-6.55 feet （5°-1.25°）
Exit Pupil: 11mm – 2.75mm
Eye Relief: 90mm-85mm
Diopter Adjustment:±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range :±8.5 MRAD (17 MRAD / 60 MOA)
Max. windage adjustment range: ±8.5 MRAD (17 MRAD / 60 MOA)
Parallax correction(yds):10yds-∞
Length: 10.6″, (270mm)
Breeze 4-16x44 IR
Model: C30624 / C30624S
Magnification: 6-24x
Scope Tube Diameter: 30mm
Lens Coating: green multi coated
Reticle Type: Etched / Illuminated
Ocular Lens Diameter：31mm
Objective Lens Diameter：44mm
Exterior Finish: Matte Black
Mounting Length：123mm
Objective/Field of View: 17.5-4.3 feet （3.3°-0.83°）
Exit Pupil:7.33mm – 1.83mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range: ±7.3 MRAD (14.5 MRAD / 50 MOA)
Max. windage adjustment range: ±7.3 MRAD (14.5 MRAD / 50 MOA
Parallax correction(yds): 10yds-∞
Length: 11.67″, (297mm)
