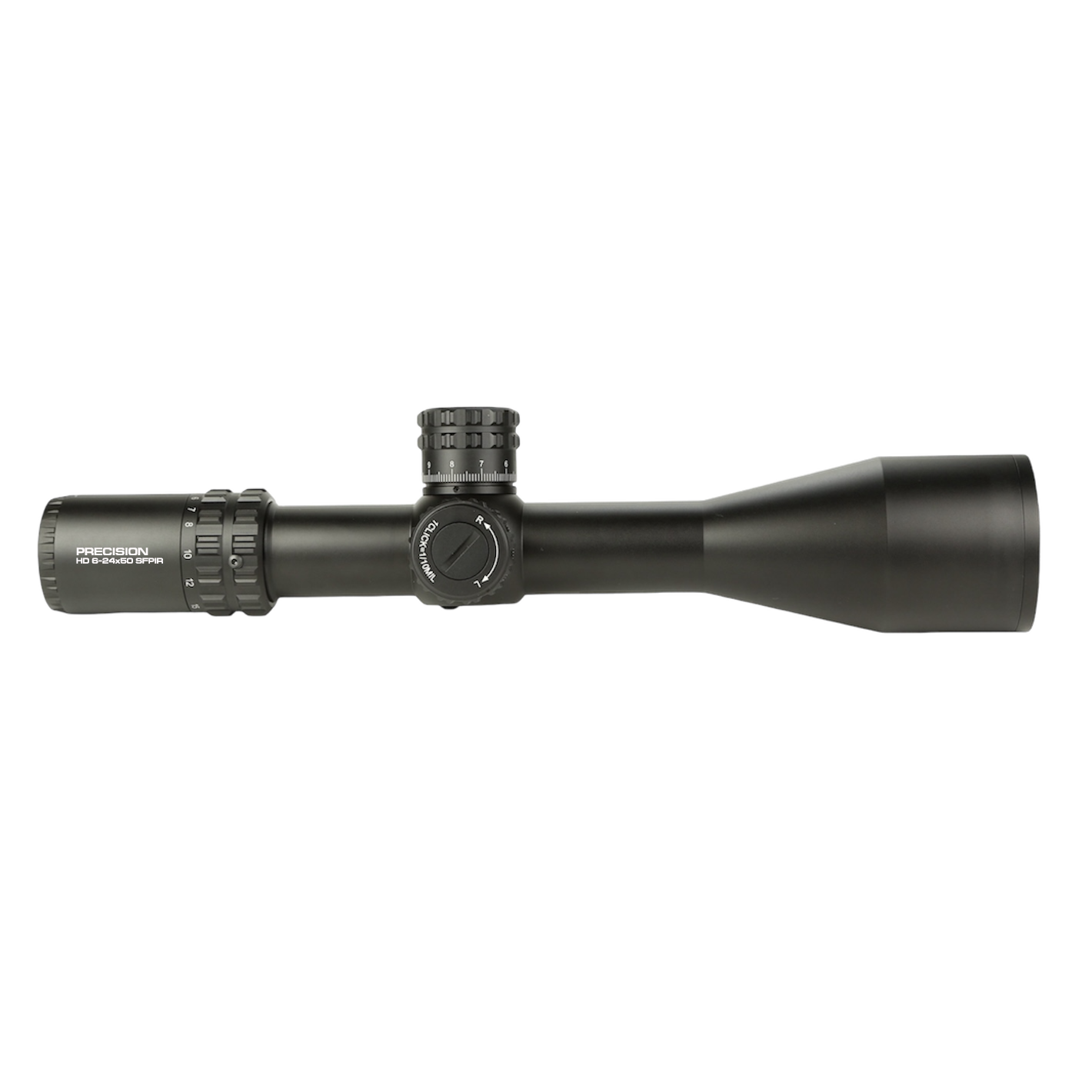

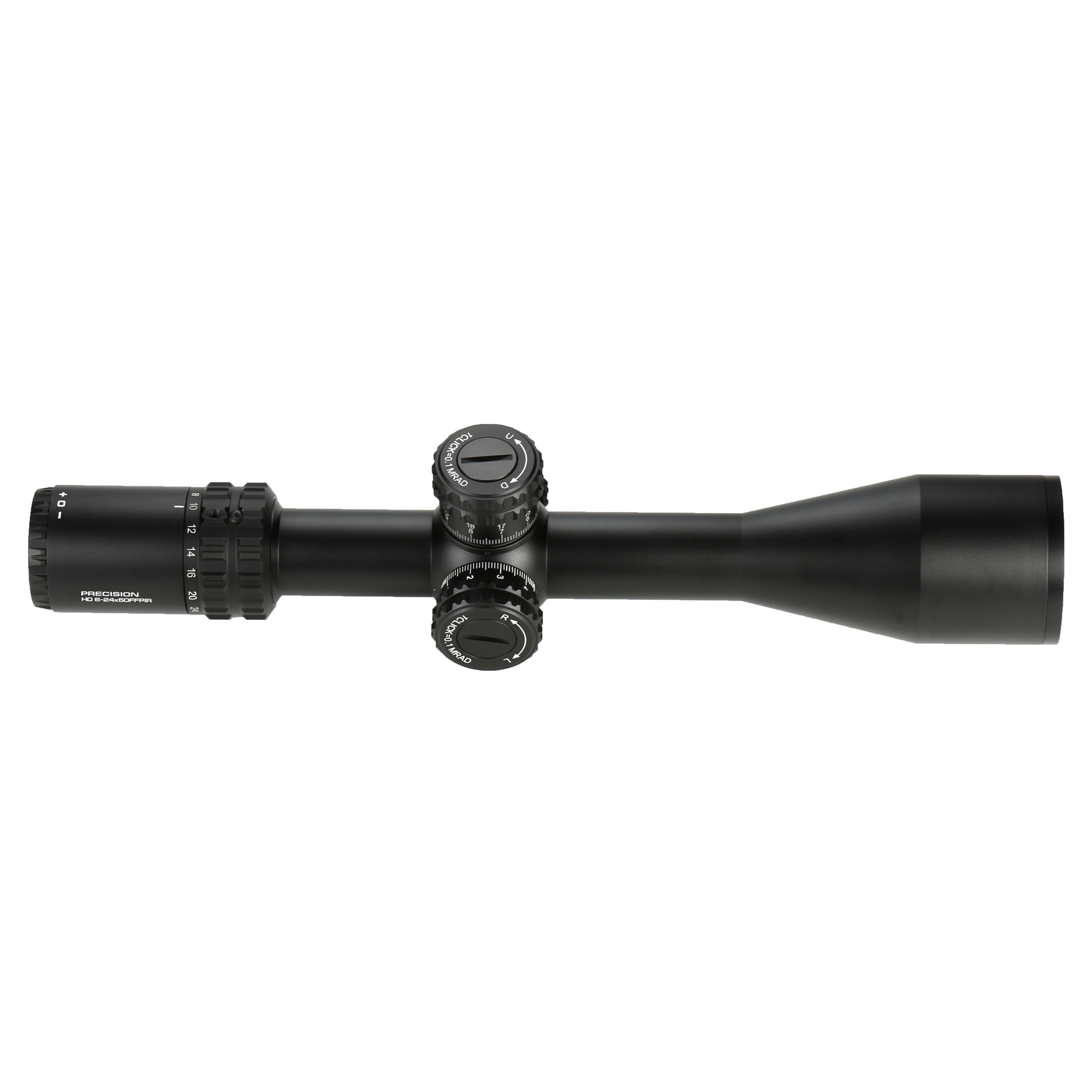

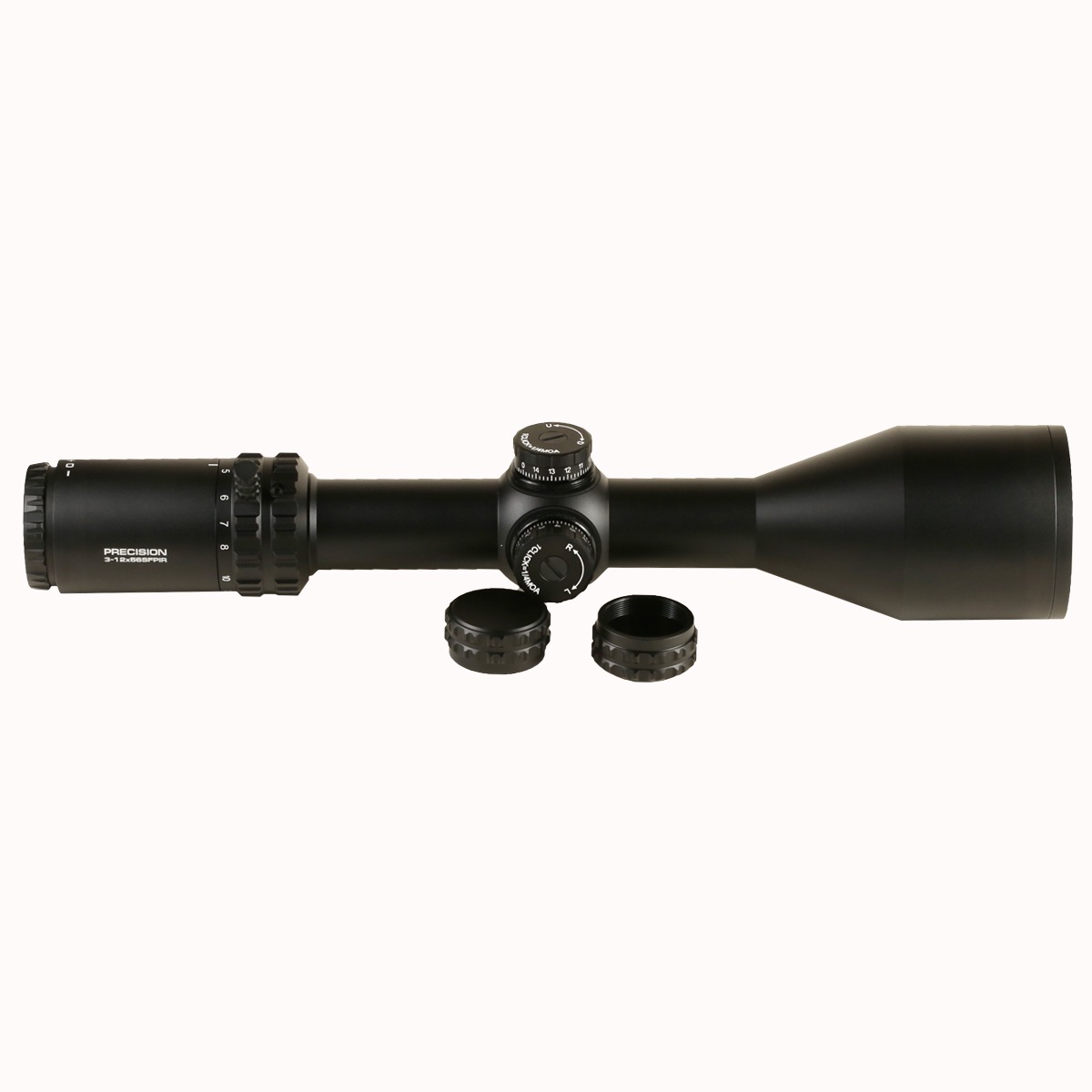

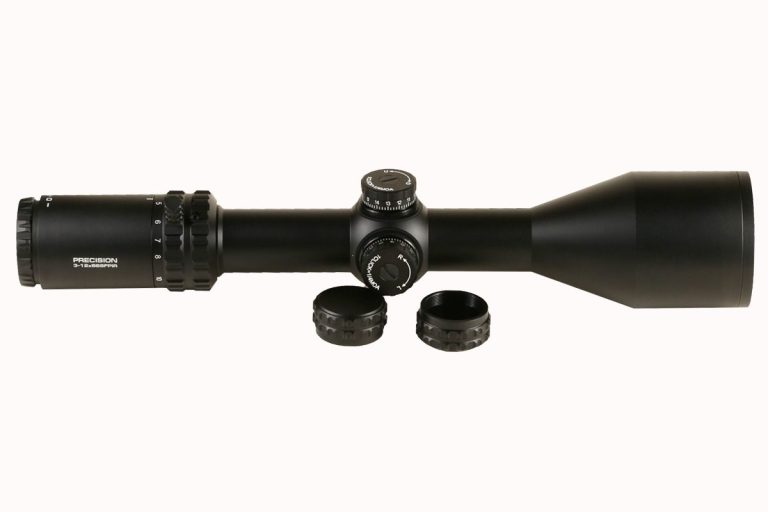

PRECISION HD Series
The Precision HD model with 4X Zoom. Features include: Zero-stop elevation turret with large range of adjustment. High Definition (HD) glass and anti-reflective coatings achieve high level of light transmission and maintain edge clarity at hogh magnifications.

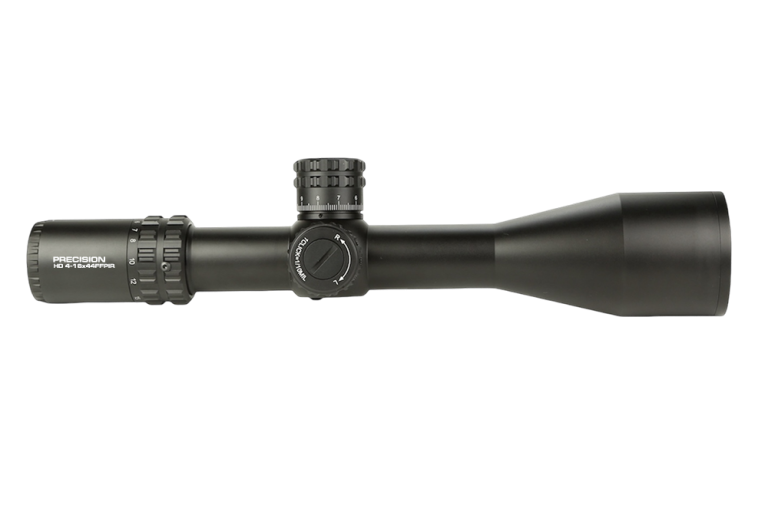

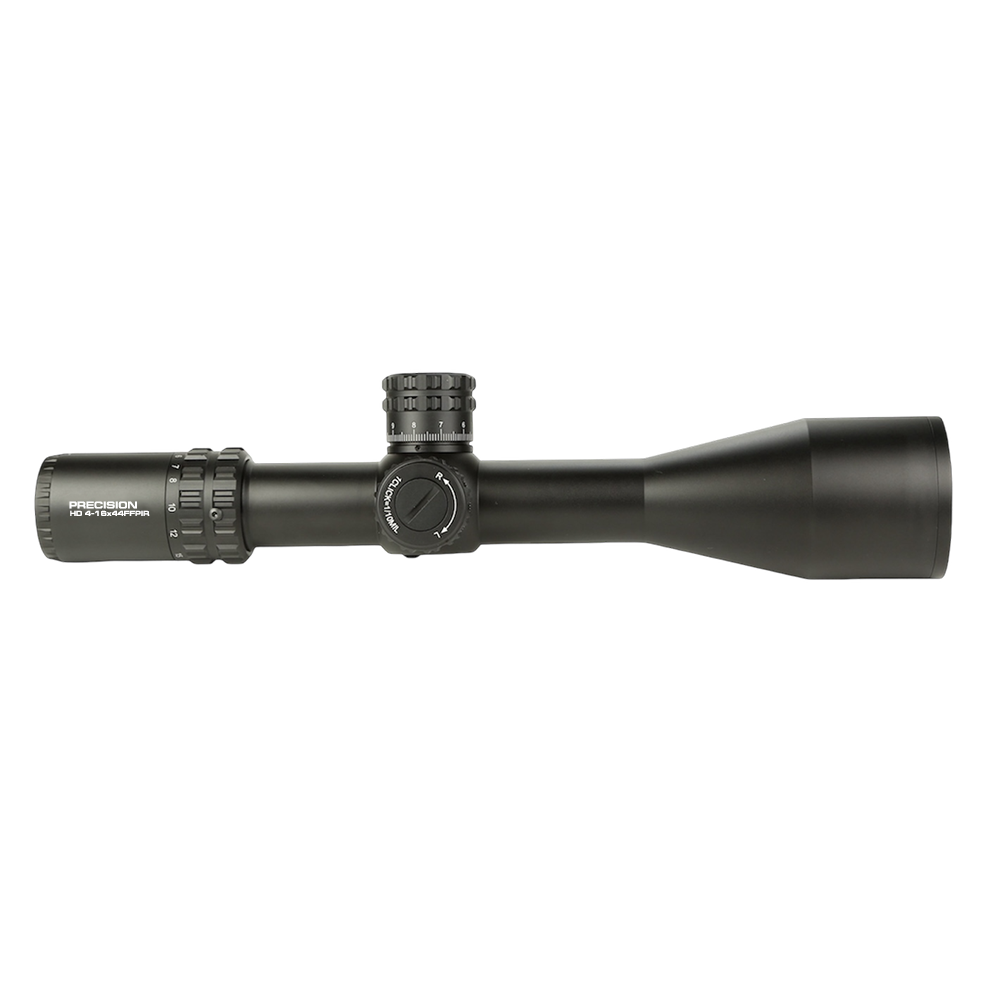

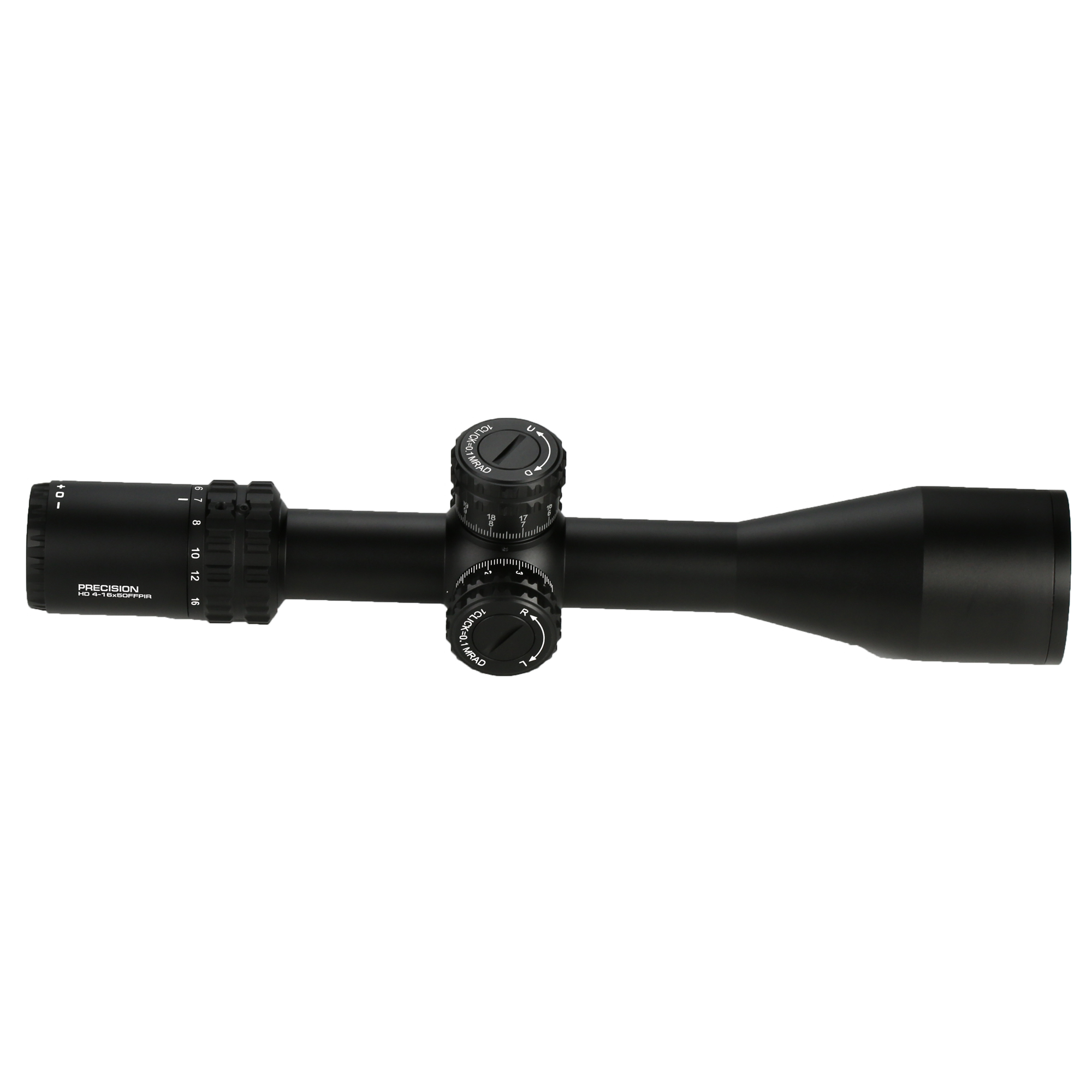

HD 4-16x44 FFP IR
HD30416
Magnification Range: Offers a 4x to 16x magnification range, suitable for mid-to-long-range shooting.
Objective Lens Diameter: The 44mm objective lens ensures a bright and clear field of view in various lighting conditions.
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing accurate range estimation and ballistic compensation at any magnification level.

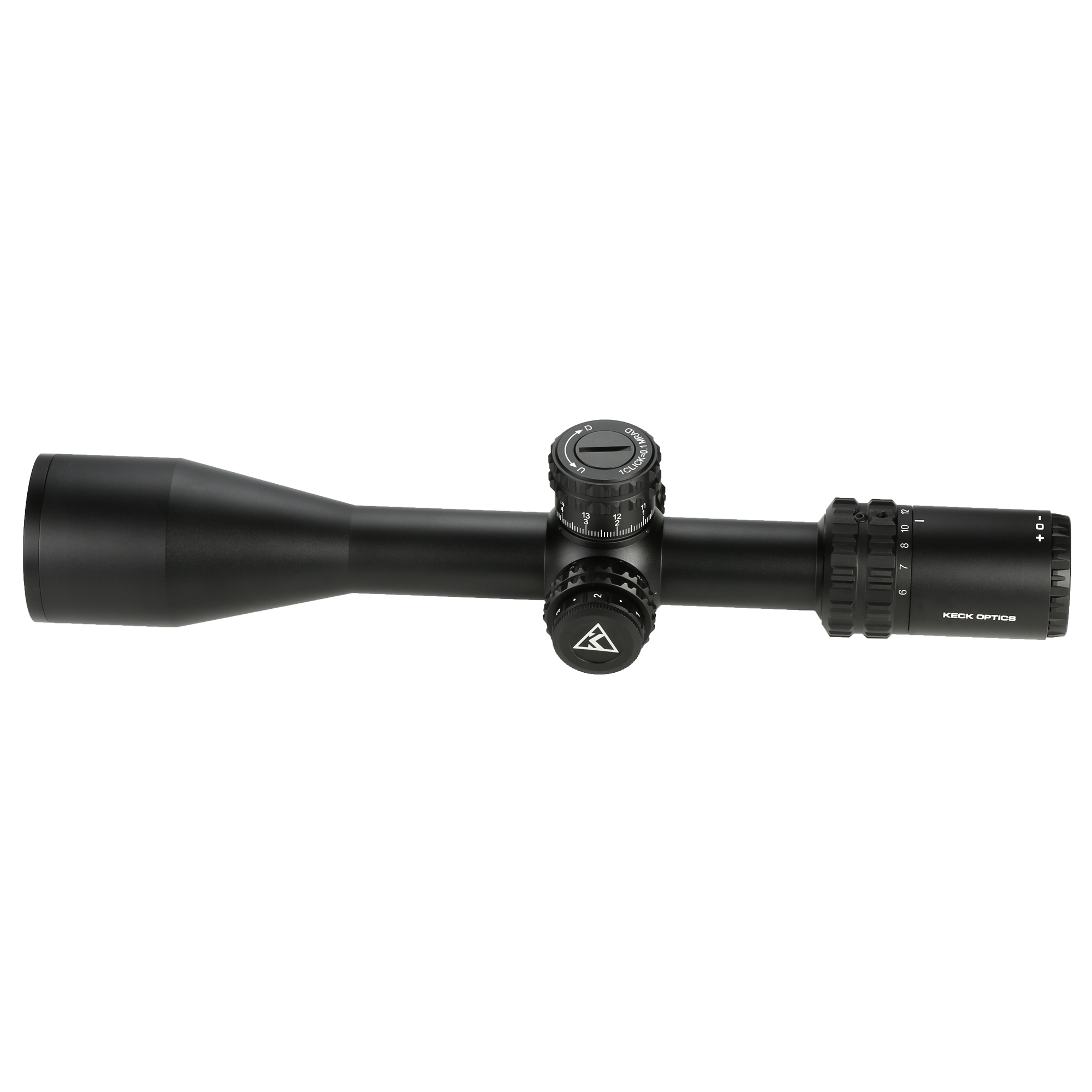

HD 4-16x44 SFP IR
HD30416S
Magnification Range: Provides a 4x to 16x magnification range, suitable for mid-close to mid-long-range shooting.
Objective Lens Diameter: The 50mm objective lens ensures a bright and clear field of view in various lighting conditions.
Second Focal Plane (SFP) Design: The reticle is on the second focal plane, keeping its size constant as magnification changes, allowing for precise aiming at different magnifications

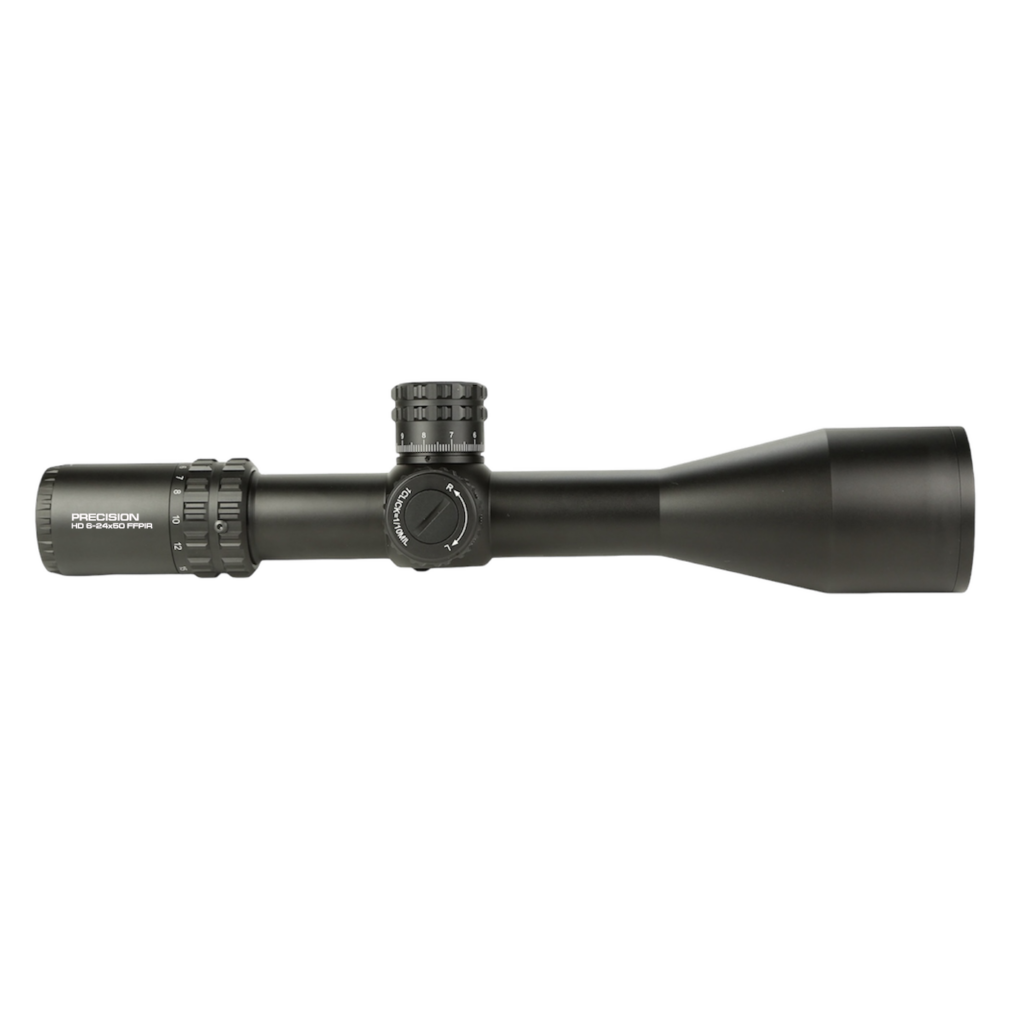

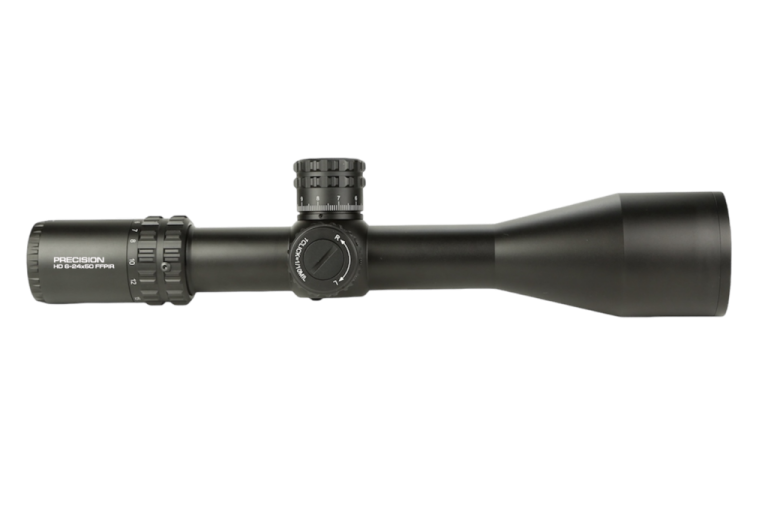

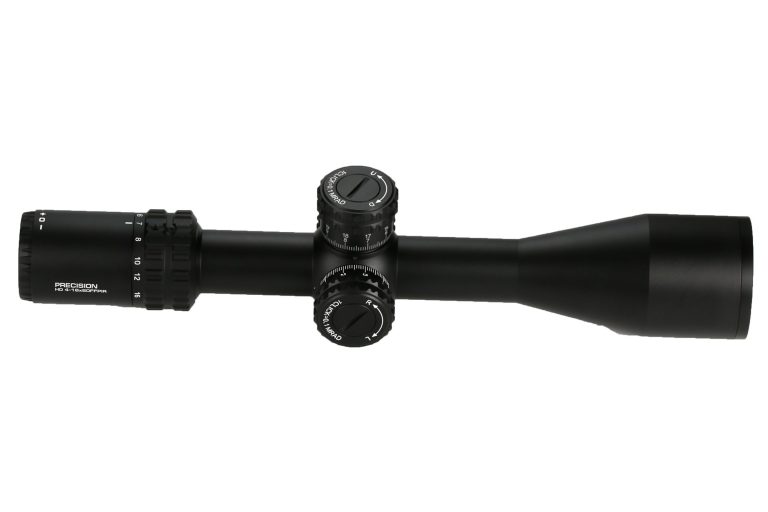

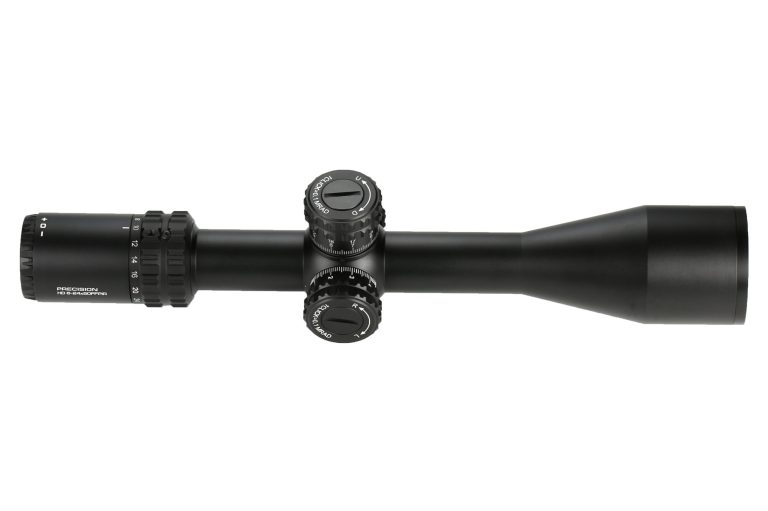

HD 6-24x50 FFP IR
HD30624
Magnification Range: Offers a 6x to 24x magnification range, ideal for mid-to-long-range shooting.
Objective Lens Diameter: The 50mm large objective lens ensures a bright and clear field of view in various lighting conditions.
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling with magnification to allow for precise range estimation and ballistic compensation at any magnification level.

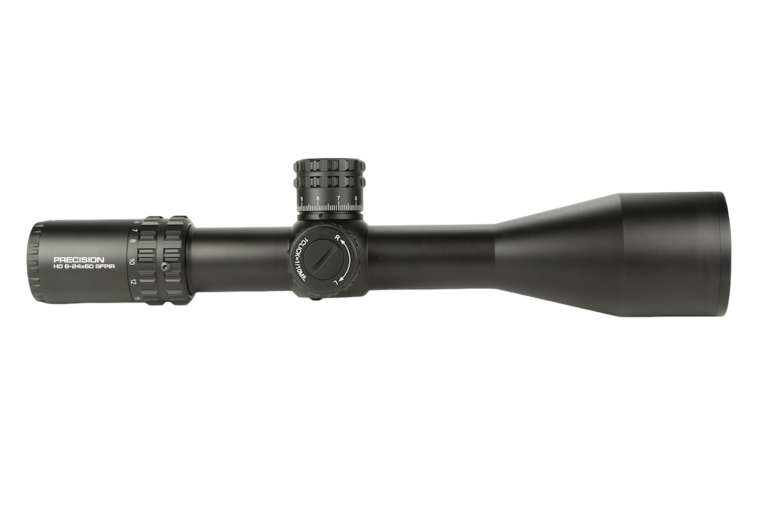

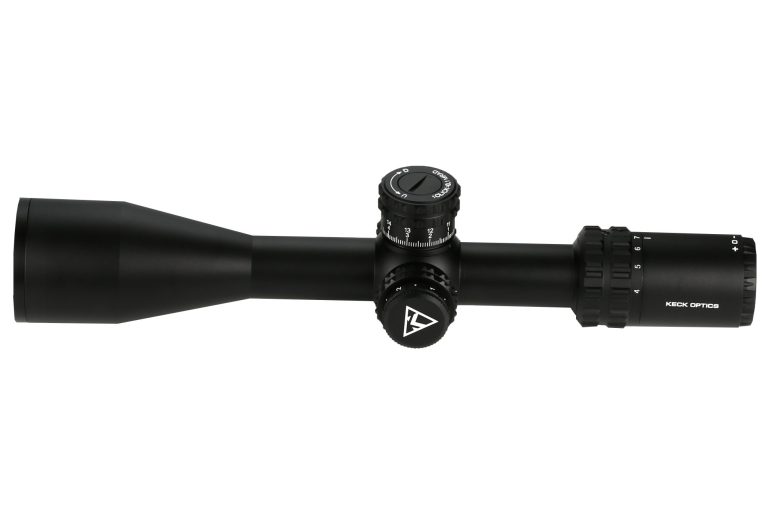

HD 6-24x50 SFP IR
HD30624S
Magnification Range: Offers a 6x to 24x magnification range, ideal for mid-to-long-range shooting needs.
Objective Lens Diameter: The large 50mm objective lens ensures a bright and clear field of view under various lighting conditions.
Second Focal Plane (SFP) Design: The reticle is located on the second focal plane, keeping its size constant as magnification changes, allowing precise aiming at different magnification levels.
Features:

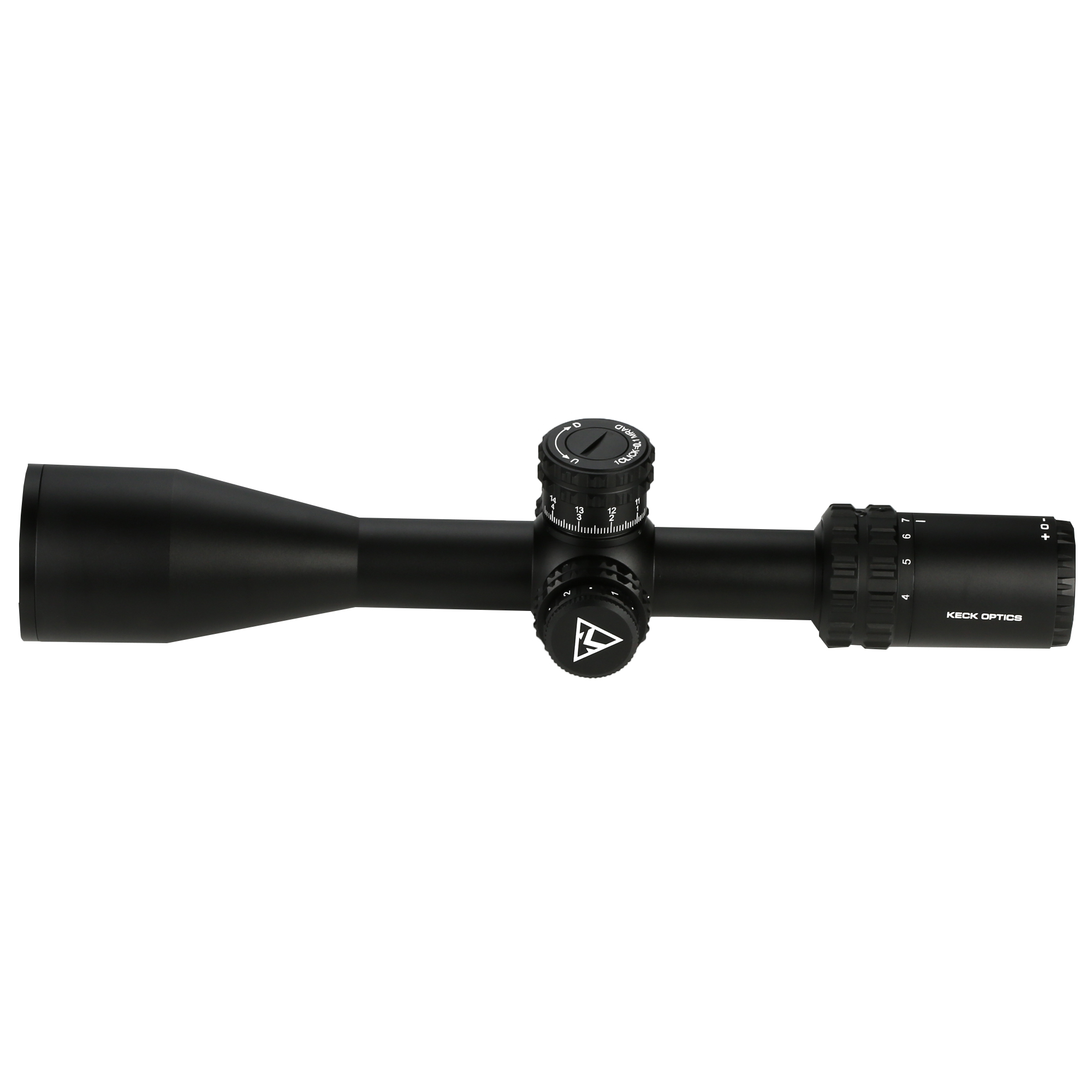

The Keck HD series are a high-performance optical device designed to meet the needs of shooting enthusiasts and professionals. Its main features and advantages include:

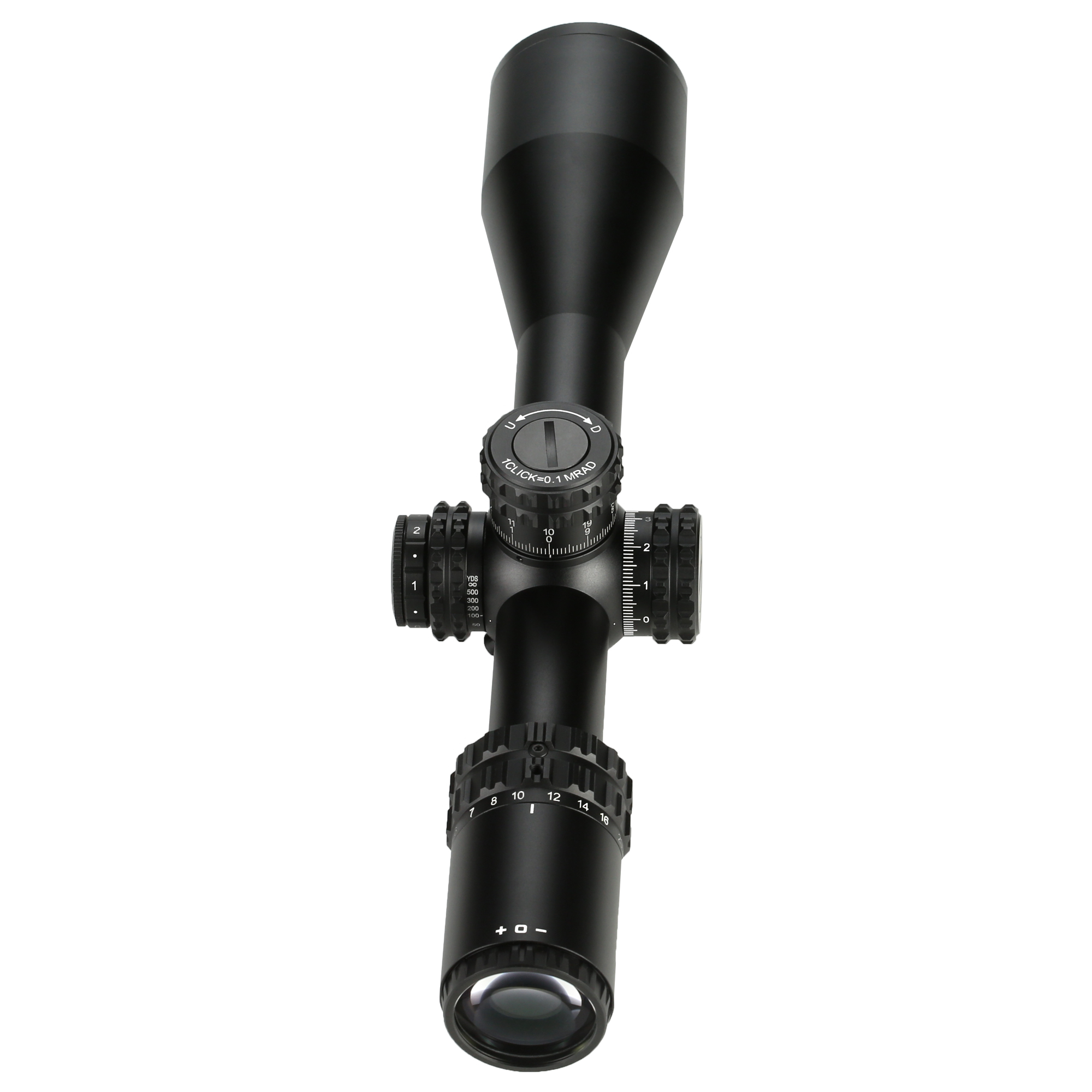

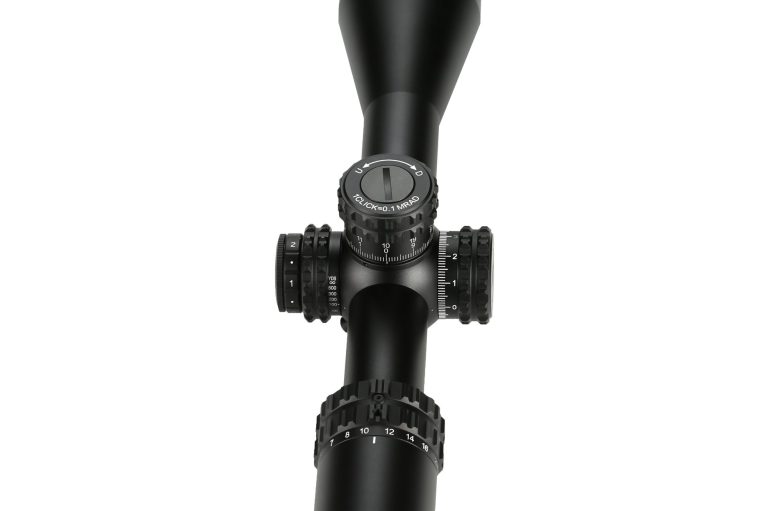

Turret Accuracy
The turret accuracy of this scope reaches up to 99%, ensuring precise adjustments with each click. This high-precision design allows users to calibrate their aim more accurately, enhancing shooting reliability and accuracy, especially in long-range shooting scenarios.

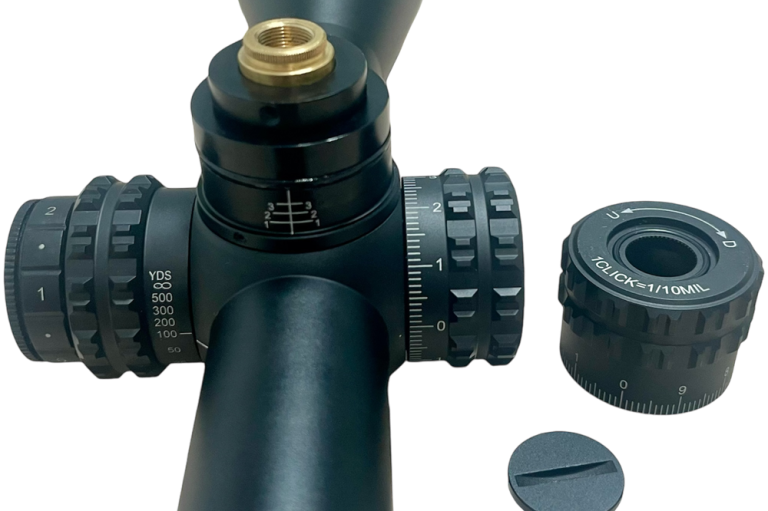

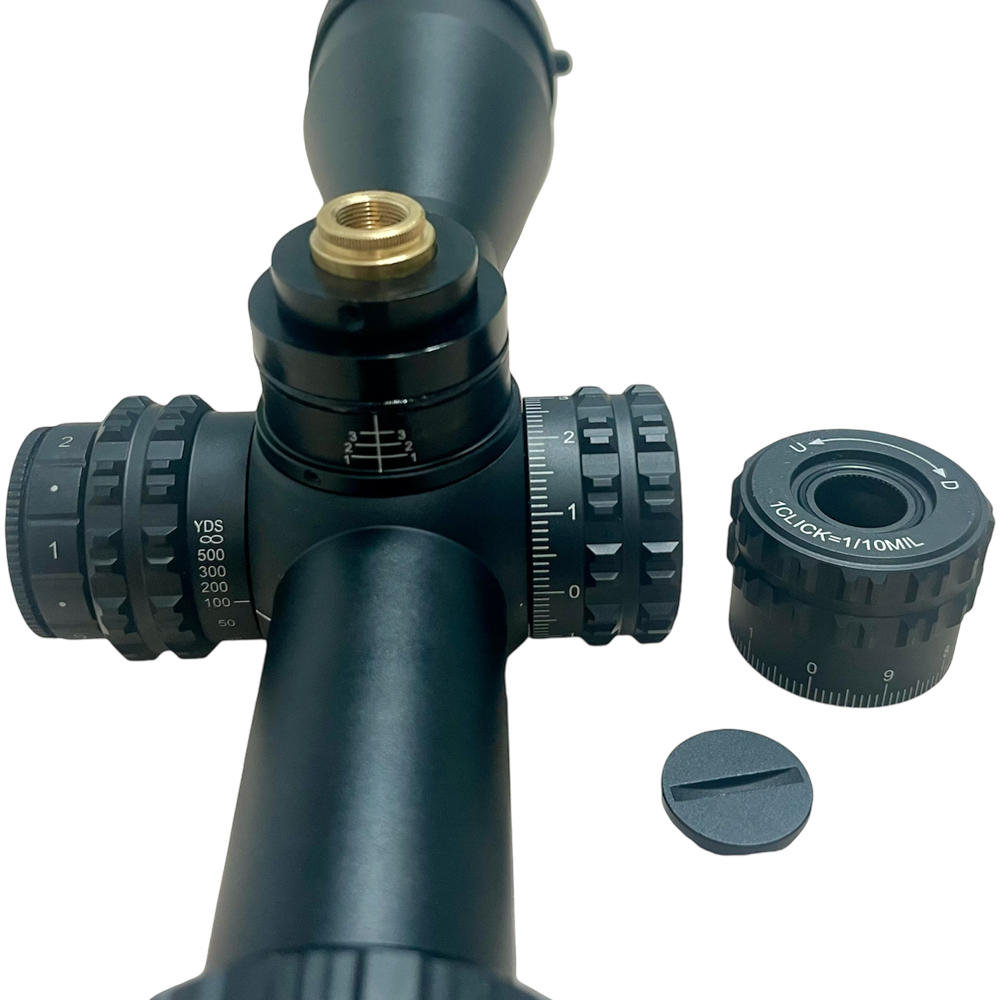

Zero Stop
The “Zero Stop” function on a rifle scope is a high-precision adjustment feature with several key advantages: Quick Return to Zero: Zero Stop allows shooters to quickly reset the scope to a preset zero position after adjustments, saving time on re-aiming and especially useful in situations that require fast response
Durable Construction
Aircraft-grade T7075 aluminum, single-piece construction with anodized finish for extreme durability.Etched illuminated glass reticle,IPX7 waterproof rating,Nitrogen-filled for fog resistance 5 year warranty

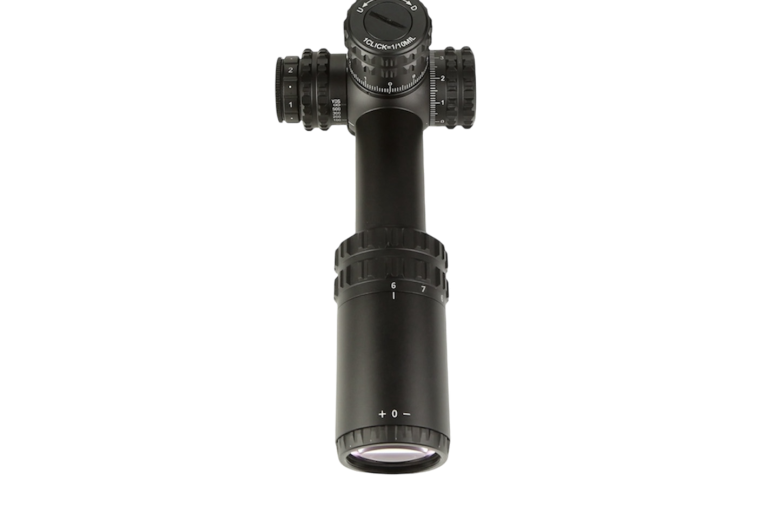

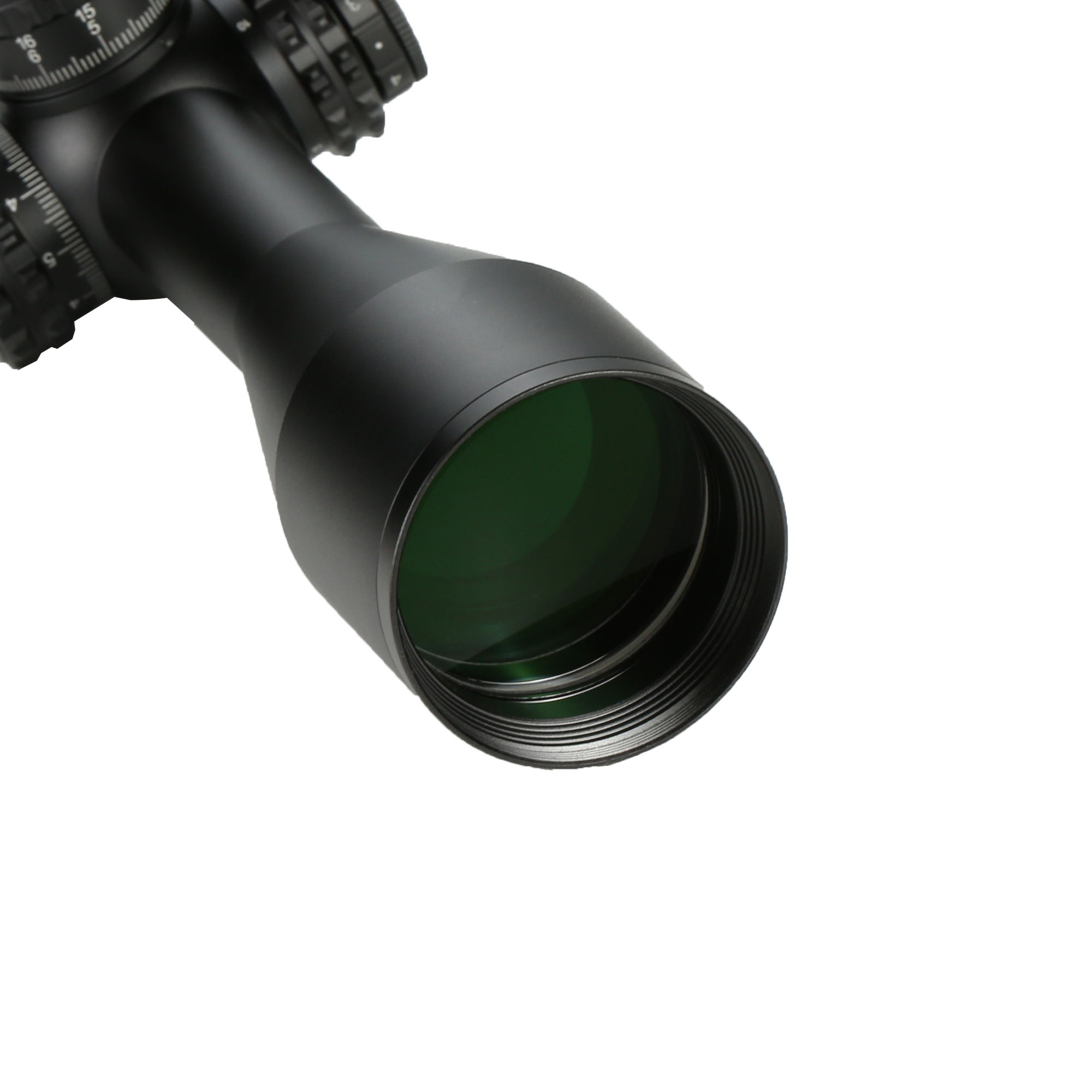

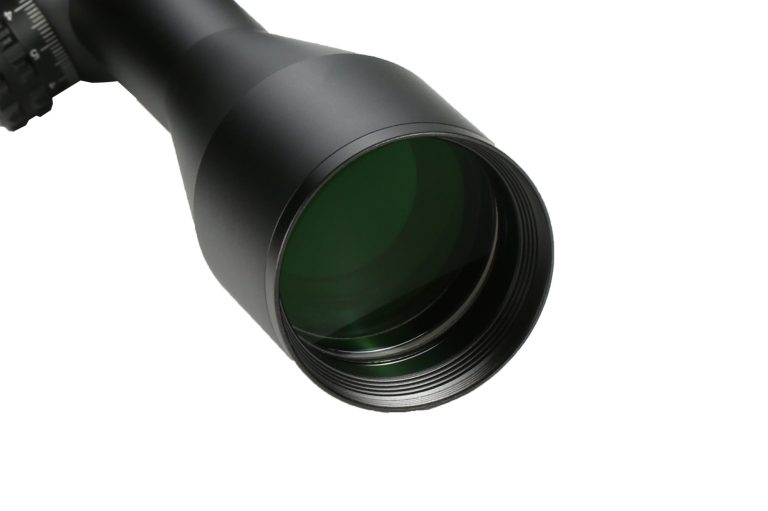

HD Optical System
Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity with over 90% light transmission.

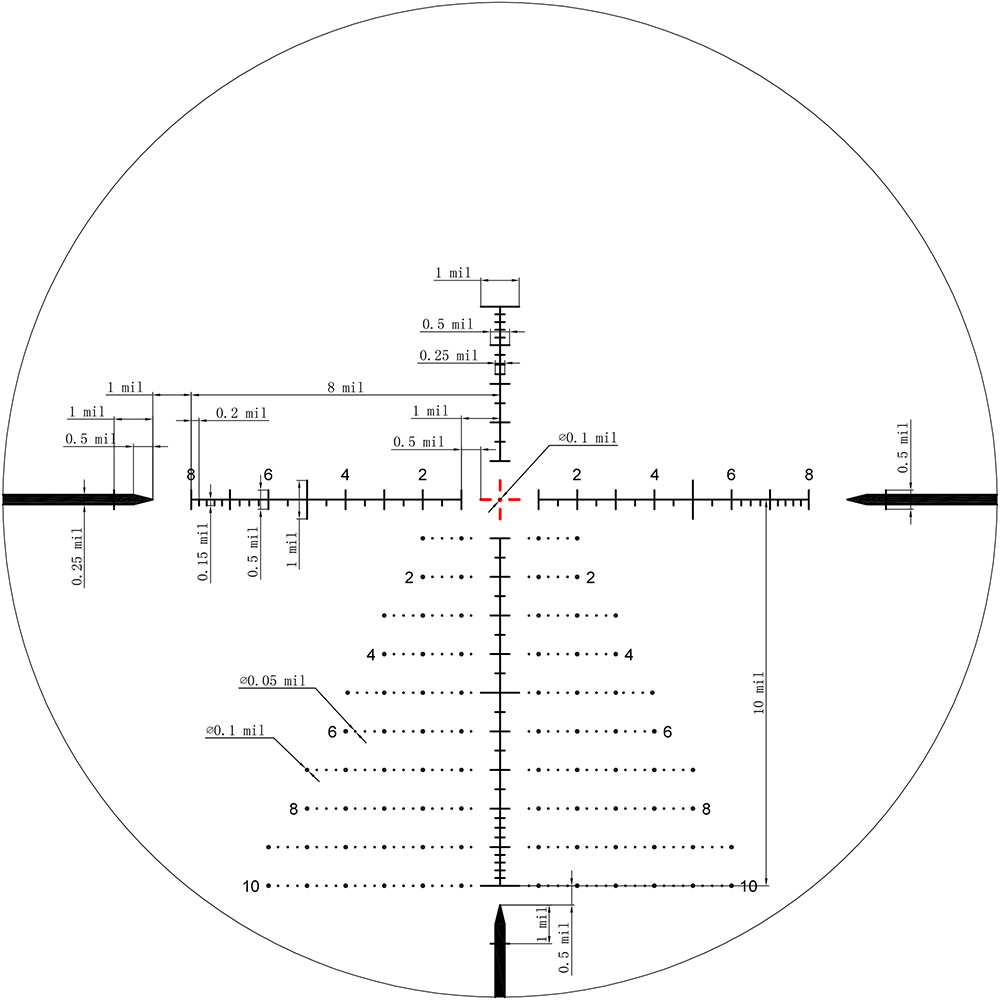

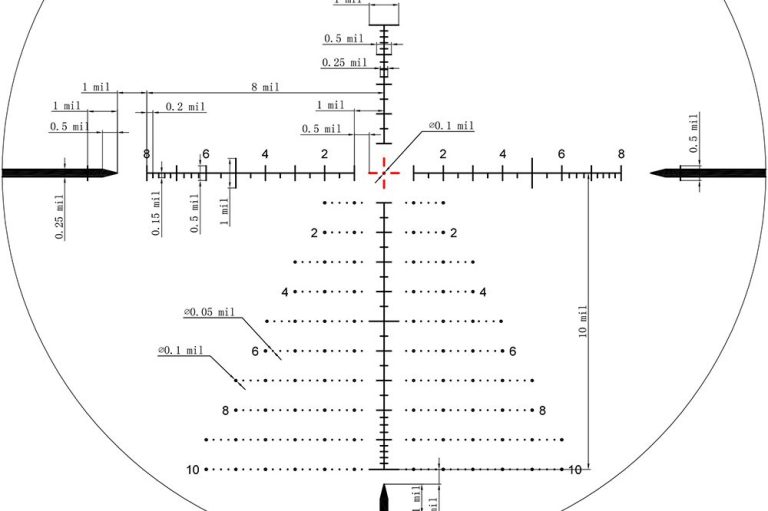

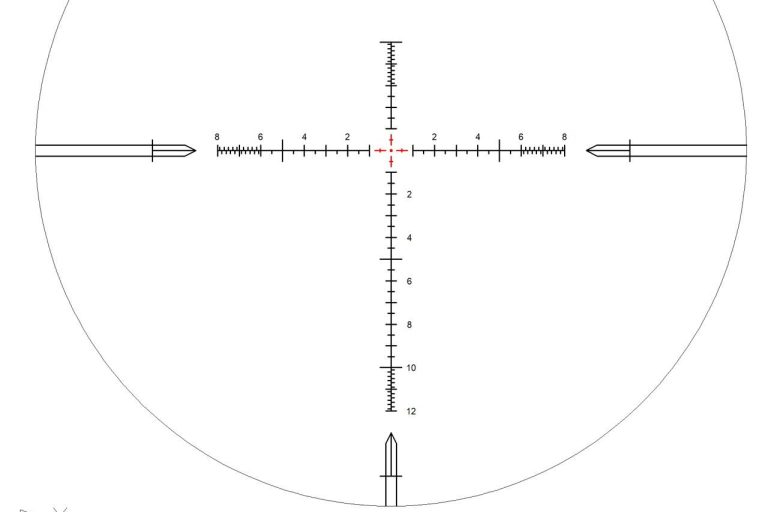

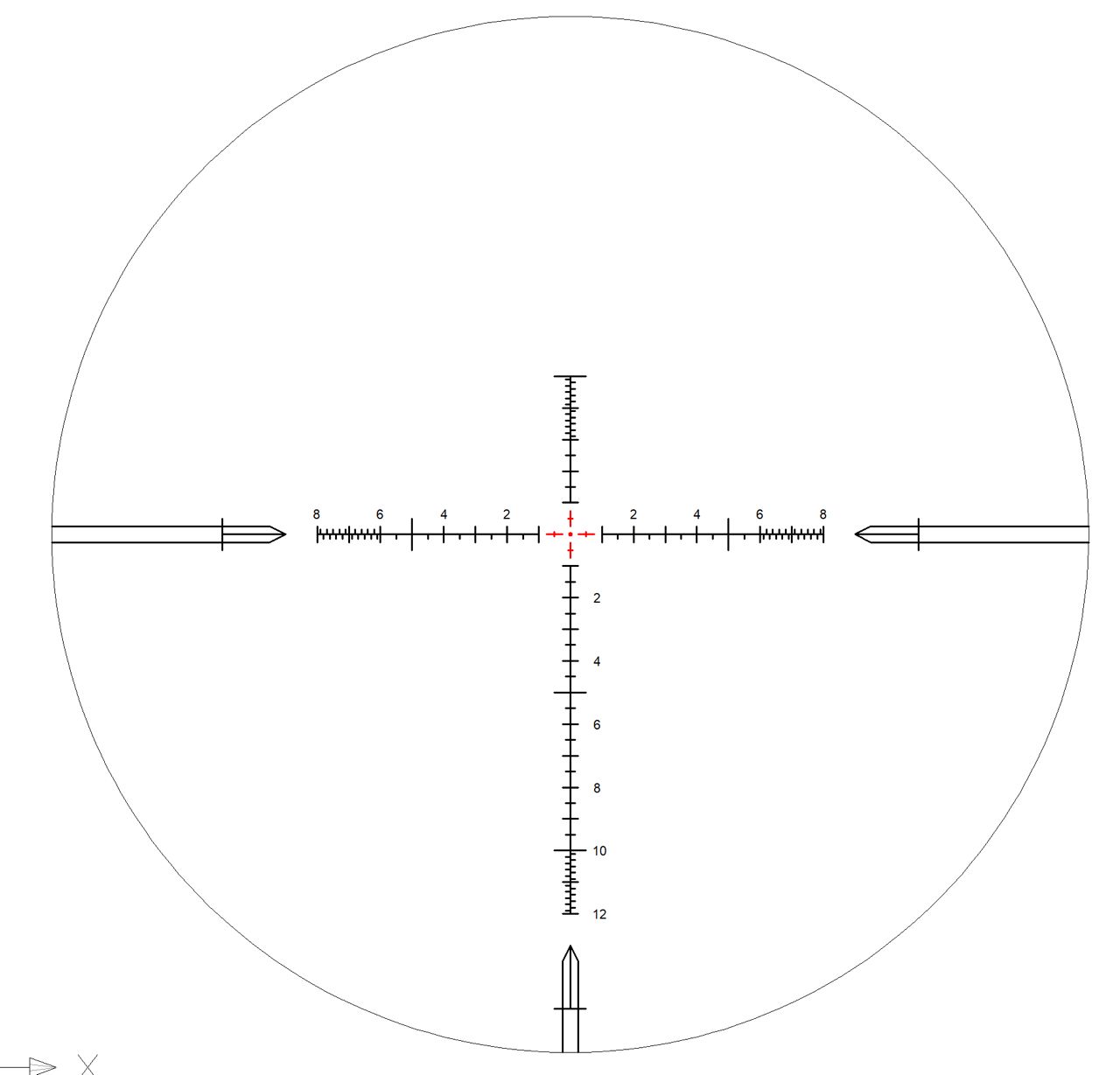

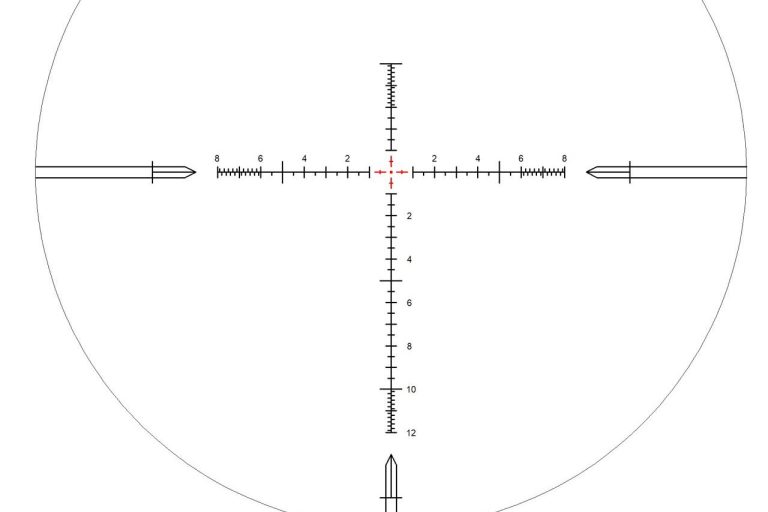

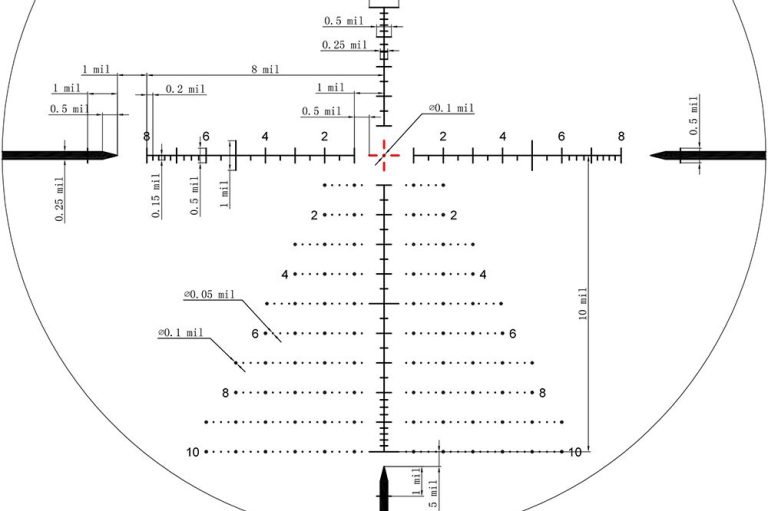

G2A FFP Reticle
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling with magnification to allow for precise range estimation and ballistic compensation at any magnification level.

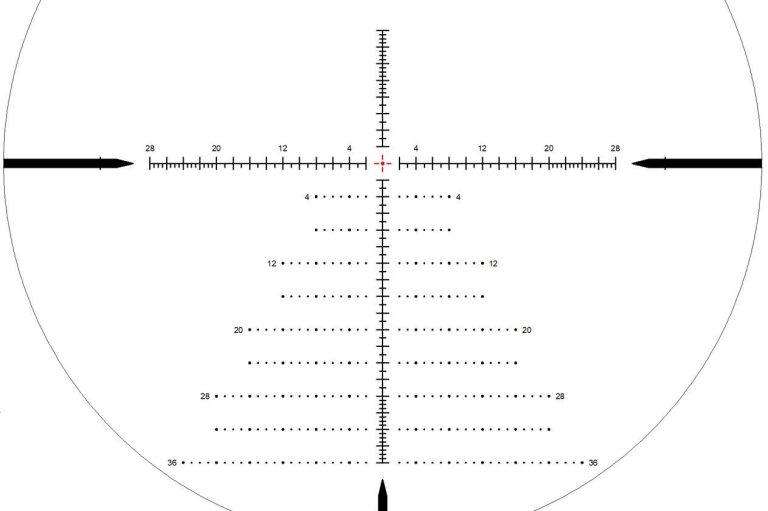

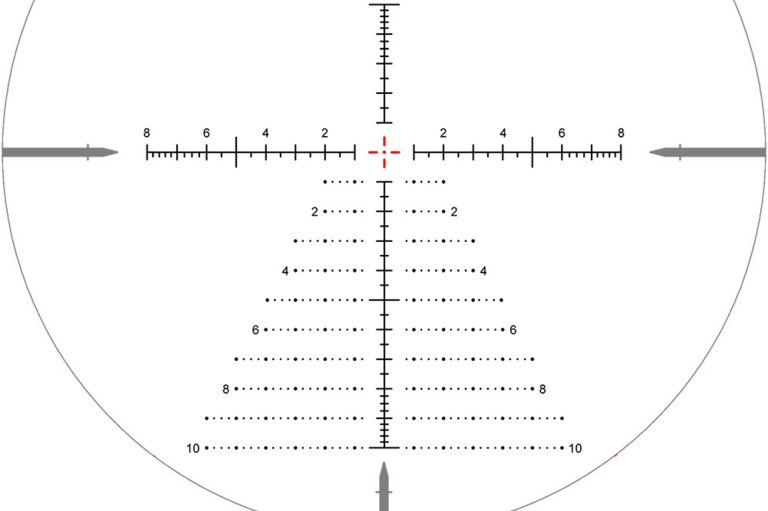

G2A FFP Reticle

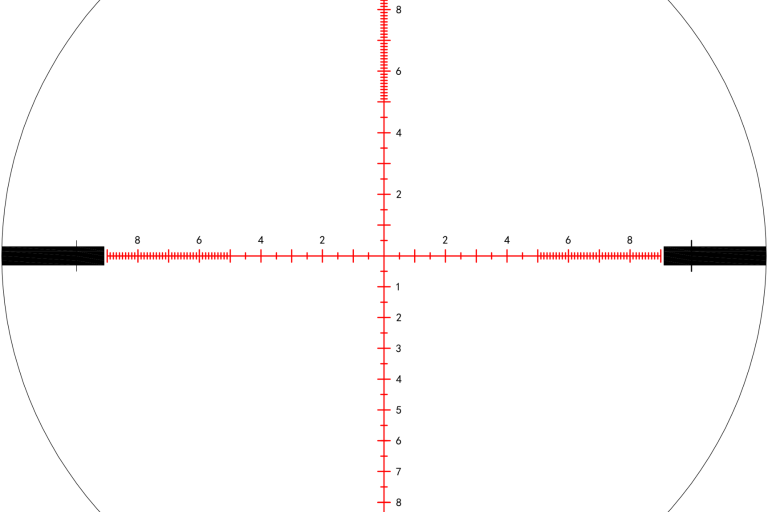

Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system, providing clear aiming in low-light conditions.

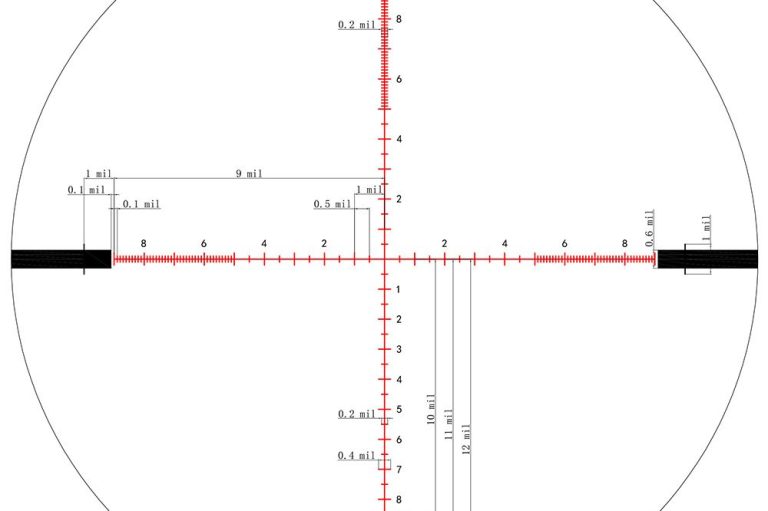

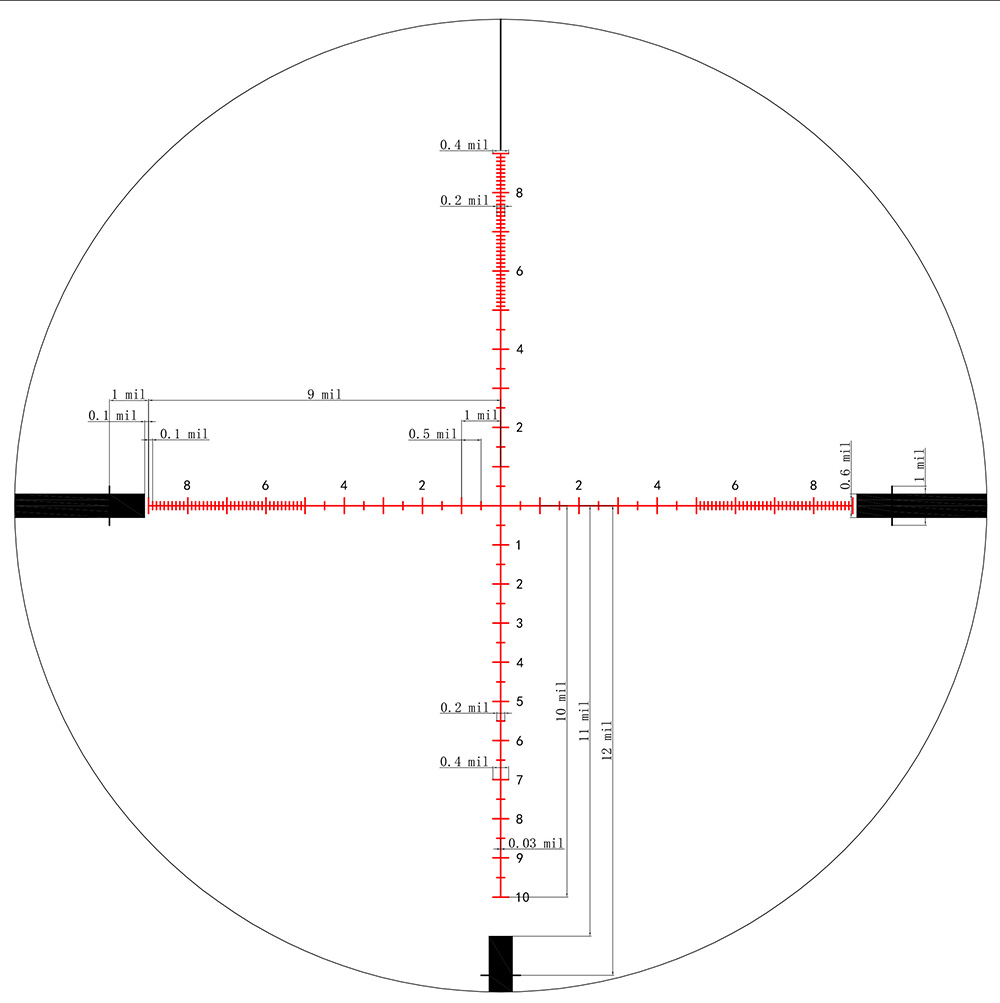

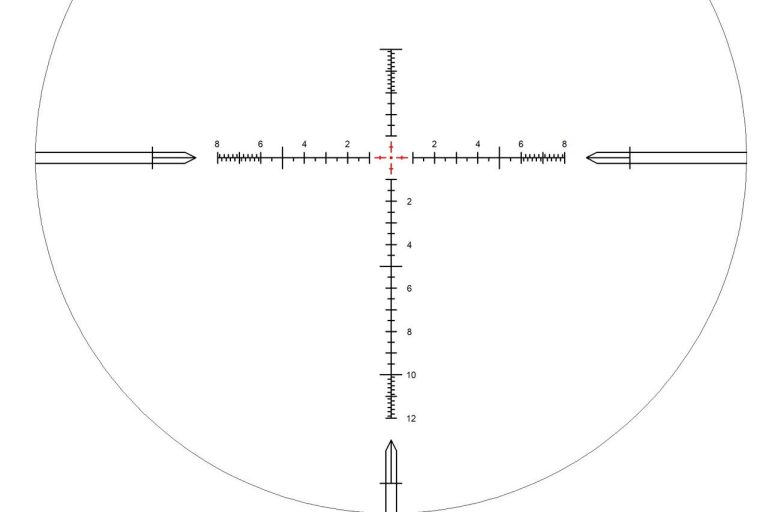

G1 SFP Reticle
Second Focal Plane (SFP) Design: The reticle is located on the second focal plane, keeping its size constant as magnification changes, allowing precise aiming at different magnification levels.

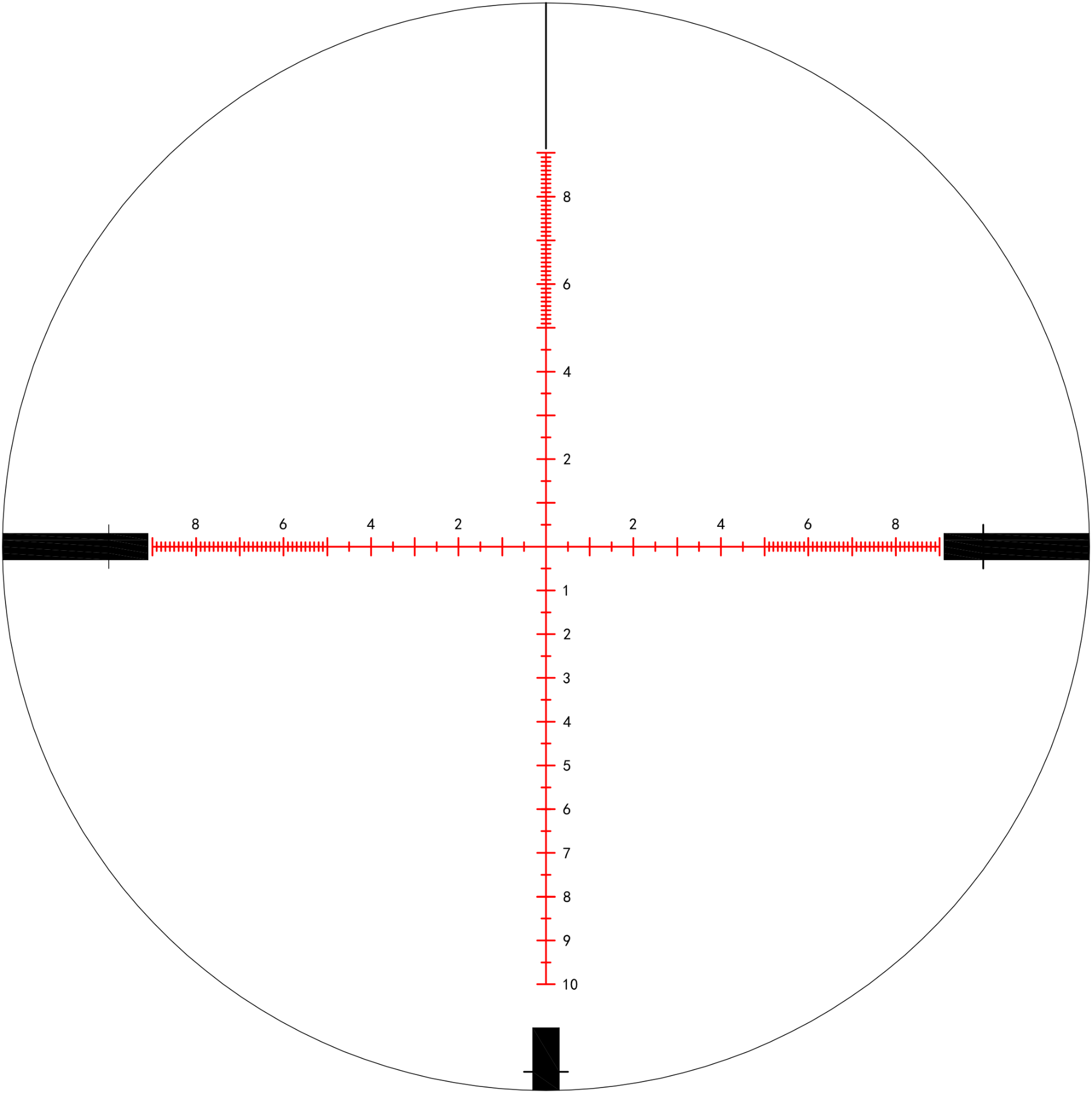

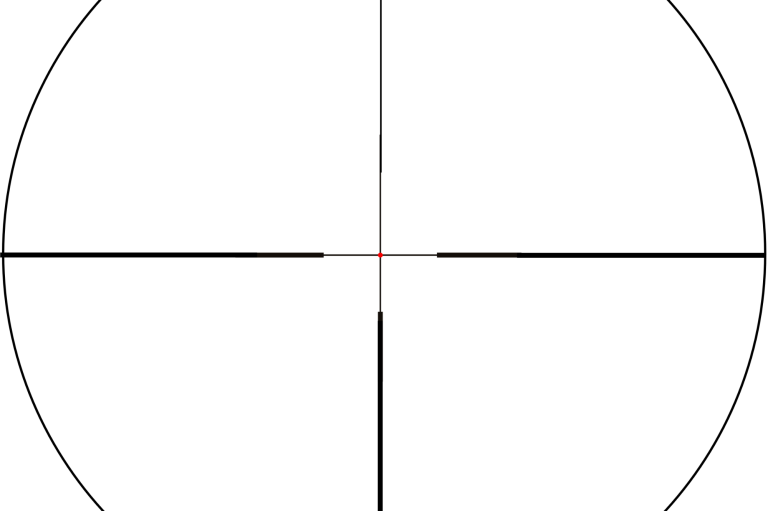

G1 SFP Reticle
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system for clear aiming in low-light environments.
Specifications:
HD 4-16x44 FFP IR
Model: HD30416
Magnification: 4-16x
Reticle: Etched / First Focal
Scope Tube Diameter: 30mm
Ocular Lens Diameter： 35mm
Objective Lens Diameter： 44mm
Exterior Finish: Matte Black
Mounting Length： 150mm
Objective/Field of View/（100yds）: 28.8-6.8feet （5.5°-1.3°）
Exit Pupil: 8mm – 2.8mm
Eye Relief: 3.78″- 3.74″,( 96mm-95mm)
Diopter Adjustment: ±2.0
Adjustment Click Value： 1/10 MIL
Max. elevation adjustment range: ±14.5 MRAD (29 MRAD /100MOA)
Max. windage adjustment range: 17.5 MRAD (60 MOA)
Parallax correction(yds): 10yds-∞
Length: 13.7″, (343.0mm
HD 4-16x44 FFP IR
Model: HD30416S
Magnification: 4-16x
Reticle: Etched / Second Focal
Scope Tube Diameter: 30mm
Ocular Lens Diameter： 35mm
Objective Lens Diameter： 44mm
Exterior Finish: Matte Black
Mounting Length： 150mm
Objective/Field of View/（100yds）: 28.8-6.8feet （5.5°-1.3°）
Exit Pupil: 8mm – 2.8mm
Eye Relief: 3.78″- 3.74″,( 96mm-95mm)
Diopter Adjustment: ±2.0
Adjustment Click Value： 1/10 MIL
Max. elevation adjustment range: ±14.5 MRAD (29 MRAD /100MOA)
Max. windage adjustment range: 17.5 MRAD (60 MOA)
Parallax correction(yds): 10yds-∞
Length: 13.7″, (343.0mm
HD 6-24x50 FFP IR
Model: HD30624
Magnification: 6-24X
Reticle: Etched / First Focal
Scope Tube Diameter: 30mm
Ocular Lens Diameter：35mm
Objective Lens Diameter: 50mm
Exterior Finish: Matte Black
Mounting Length：155mm
Objective/Field of View/（100yds）: 18.9-4.7 feet （3.6°-0.9°）
Exit Pupil:10mm – 2mm
Eye Relief: 3.78″- 3.74″,( 96mm-95mm)
Diopter Adjustment: ±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range: ±13 MRAD (26 MRAD/ 90 MOA)
Max. windage adjustment range: 17.5 MRAD ( 60 MOA)
Parallax correction(yds): 10yds-∞
Length: 13.9″, (352.0mm)
HD 6-24x50 SFP IR
Model: HD30624S
Magnification: 6-24X
Reticle: Etched / Second Focal
Scope Tube Diameter: 30mm
Ocular Lens Diameter：35mm
Objective Lens Diameter: 50mm
Exterior Finish: Matte Black
Mounting Length：155mm
Objective/Field of View/（100yds）: 18.9-4.7 feet （3.6°-0.9°）
Exit Pupil:10mm – 2mm
Eye Relief: 3.78″- 3.74″,( 96mm-95mm)
Diopter Adjustment: ±2.0
Adjustment Click Value：1/10 MIL
Max. elevation adjustment range: ±13 MRAD (26 MRAD/ 90 MOA)
Max. windage adjustment range: 17.5 MRAD ( 60 MOA)
Parallax correction(yds): 10yds-∞
Length: 13.9″, (352.0mm)
